Unitree H1

High-Performance Humanoid Robot for Advanced Applications

Combining agility, intelligence, and adaptability for diverse real-world scenarios.

Unitree H1 Overview

The Unitree H1 is a full-size universal humanoid robot engineered for high performance, agility, and versatility. Standing approximately 180 cm tall and weighing around 47 kg, the Unitree H1 boasts a peak torque density of 189 N·m/kg and a maximum joint torque of 360 N·m. Equipped with advanced 360° depth sensing technology, including 3D LiDAR and depth cameras, the Unitree H1 is capable of precise environmental perception, making it suitable for complex tasks in various settings.

Features & Benefits

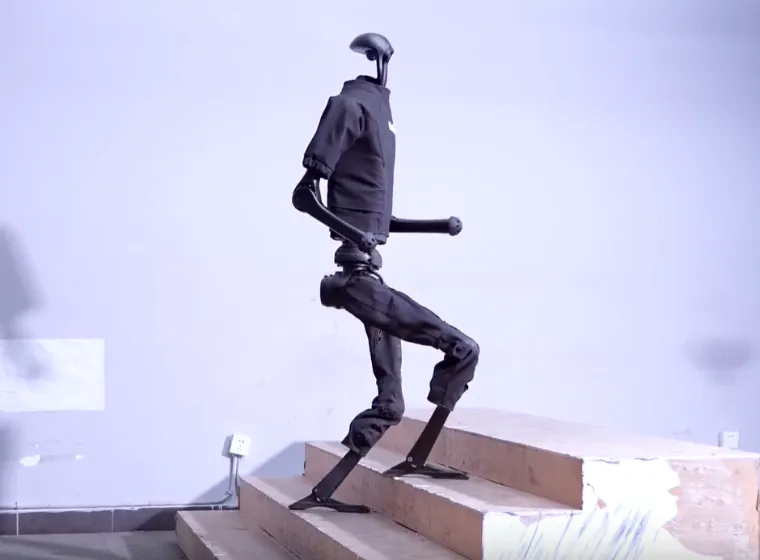

Advanced Mobility

Achieves walking speeds up to 3.3 m/s, with the Unitree H1 capable of potential mobility exceeding 5 m/s, setting a world record for humanoid robots.

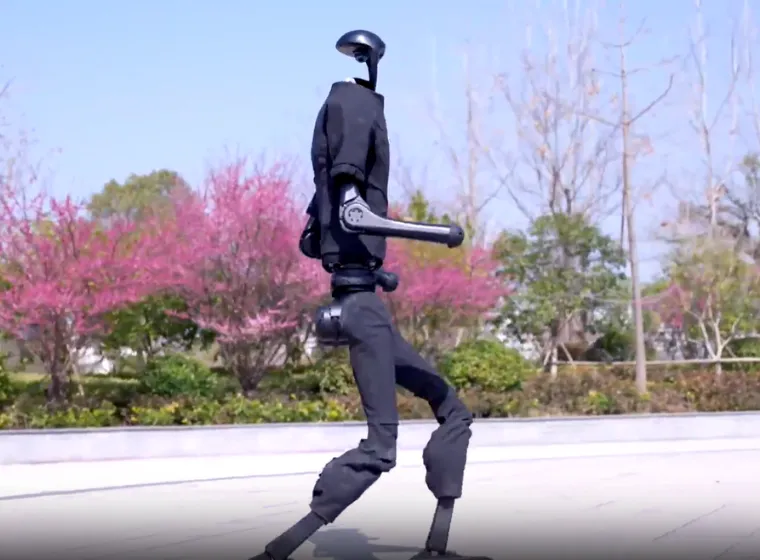

High Torque Performance

Features self-developed M107 joint motors delivering up to 360 N·m torque, ensuring powerful and responsive movements in the H1 robot.

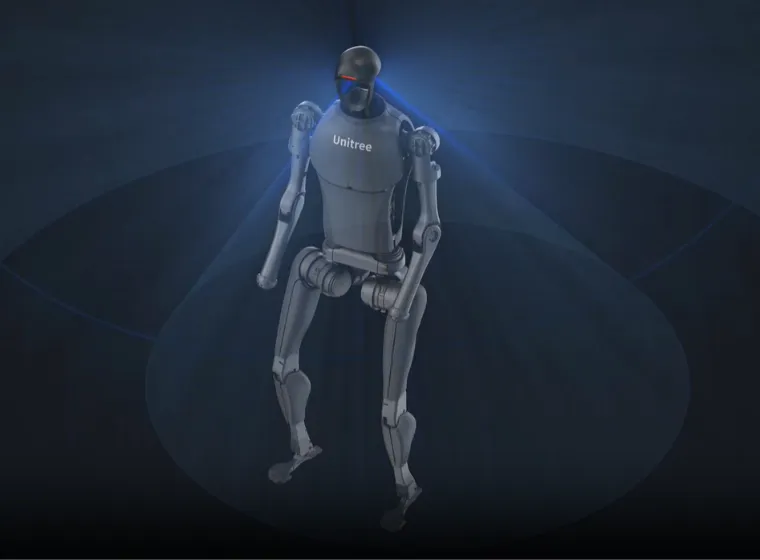

360° Environmental Awareness

Integrated 3D LiDAR and depth cameras provide comprehensive spatial perception for navigation and task execution in the Unitree H1 robot.

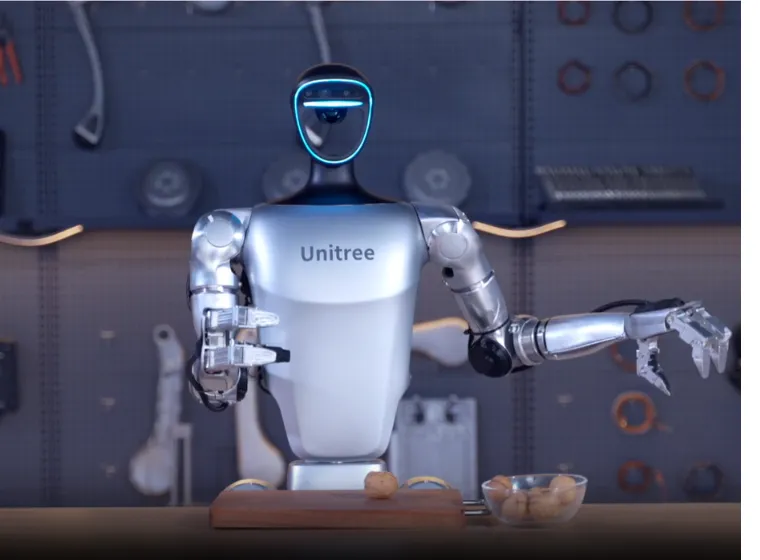

Modular Design

Supports expandable degrees of freedom (DOF) for arms and legs, allowing the Unitree H1 to be customized for specific applications.

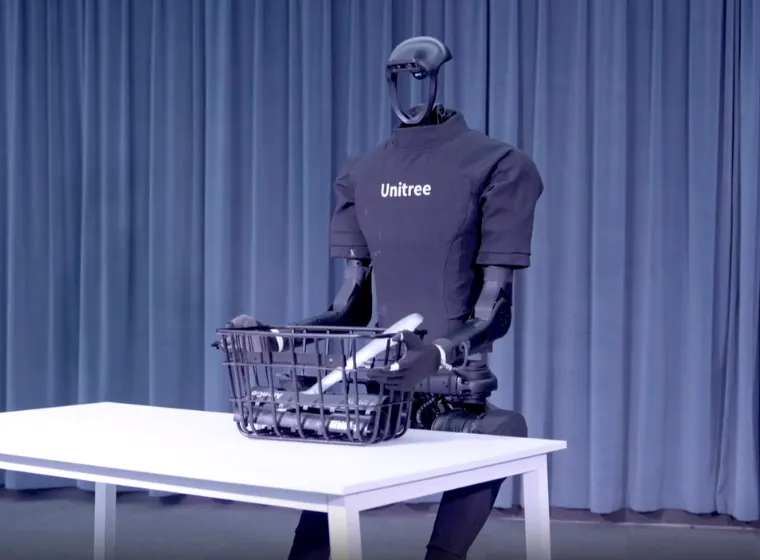

Robust Construction

Built with industrial-grade crossed roller bearings and low inertia high-speed internal rotor PMSM, the H1 ensures durability and precision.

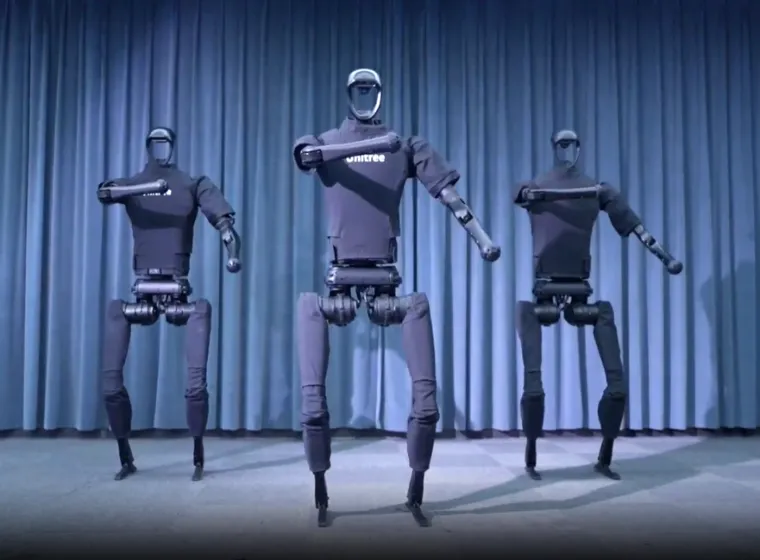

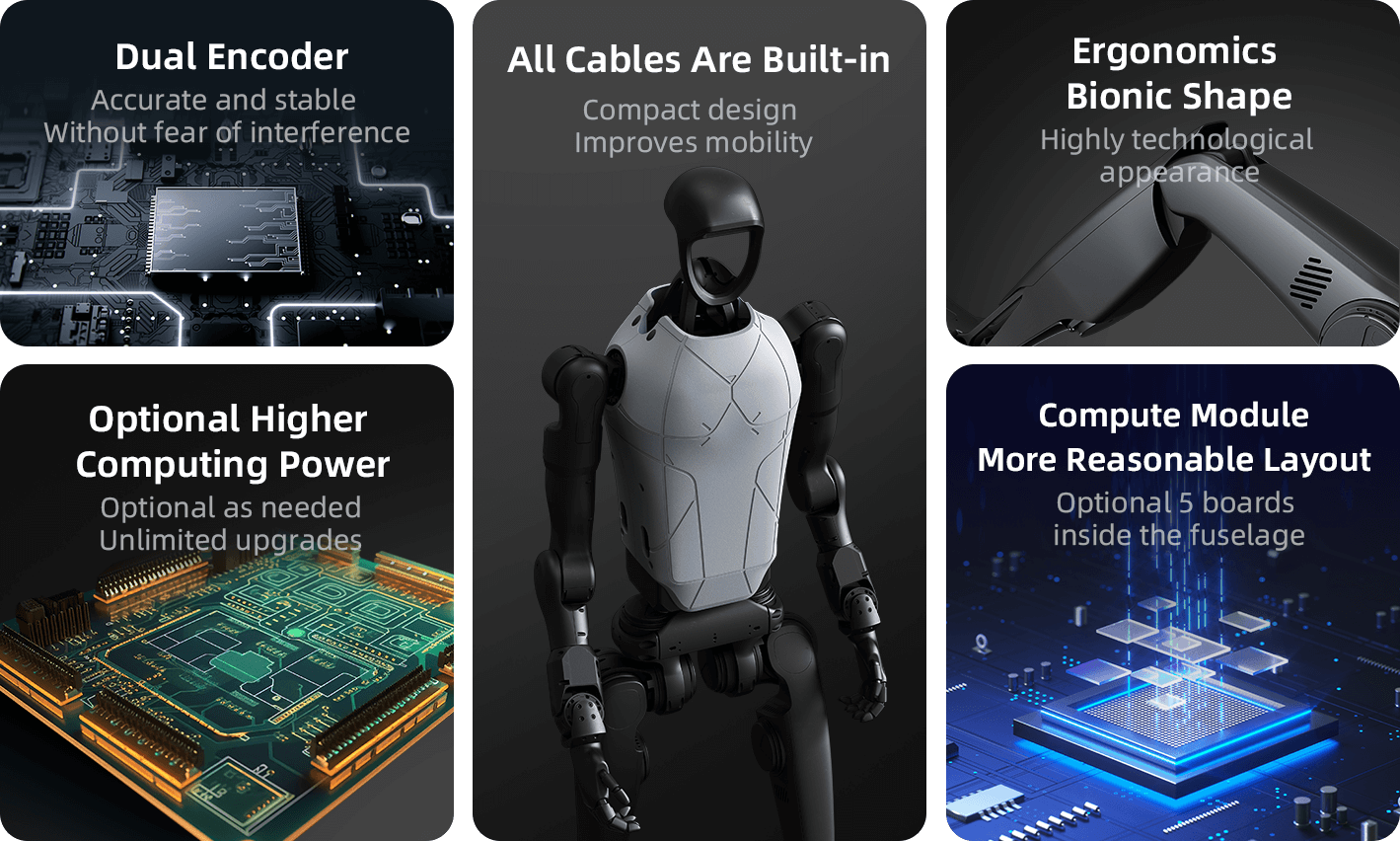

Intelligent Control Systems

Equipped with Intel Core i5/i7 processors and optional NVIDIA Jetson Orin NX, the H1 robot delivers advanced computing and AI capabilities.

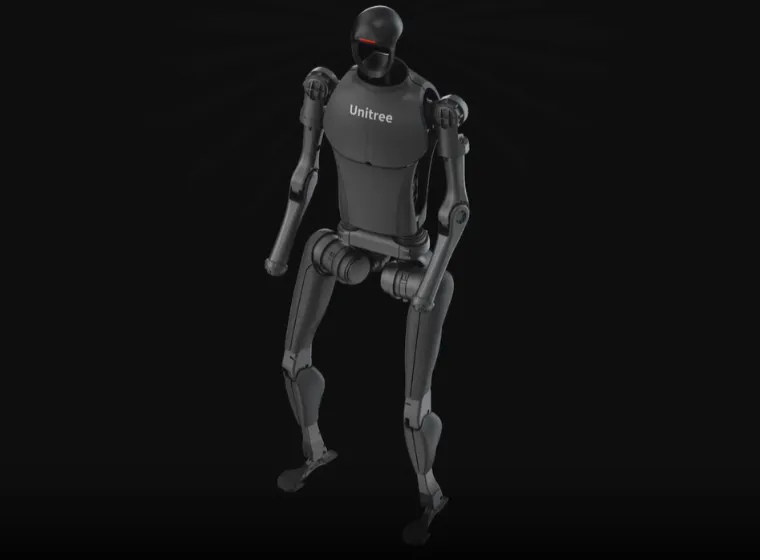

Quick Battery Replacement

Powered by a 15 Ah (0.864 kWh) battery with a maximum voltage of 67.2V, the Unitree H1 is designed for swift swapping to minimize downtime.

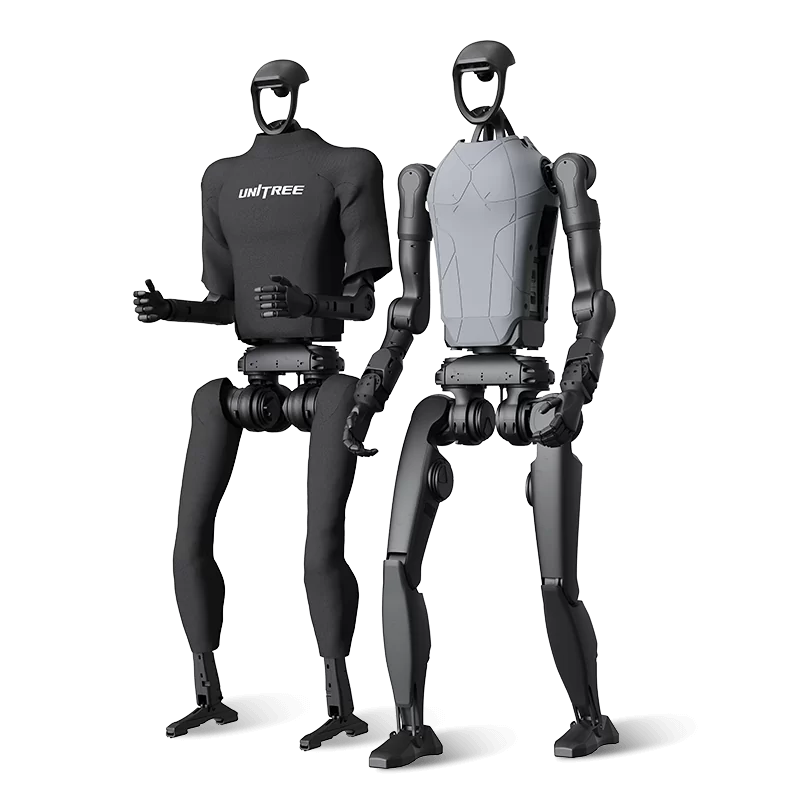

H1-2 Discover Hidden Highlights

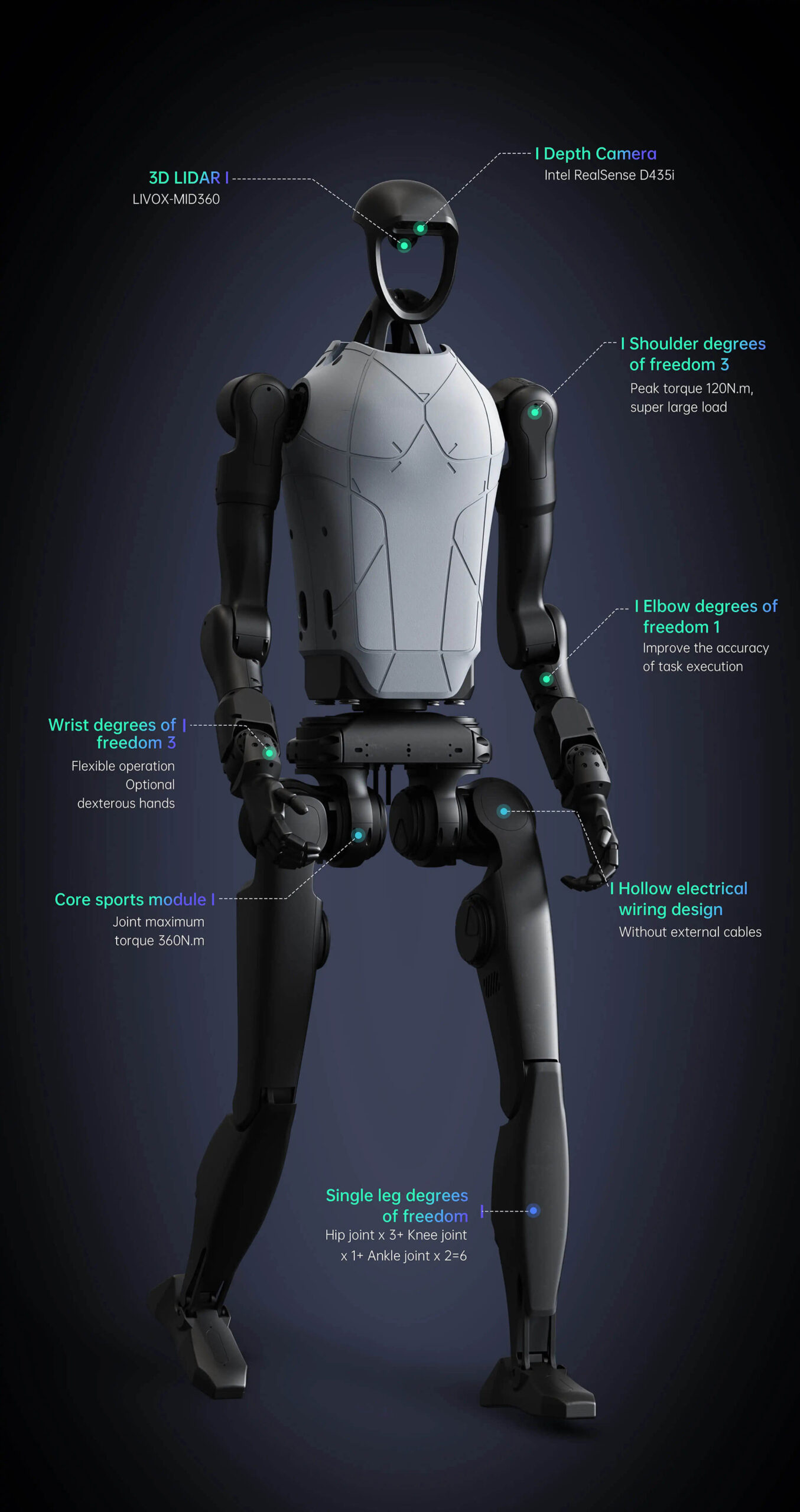

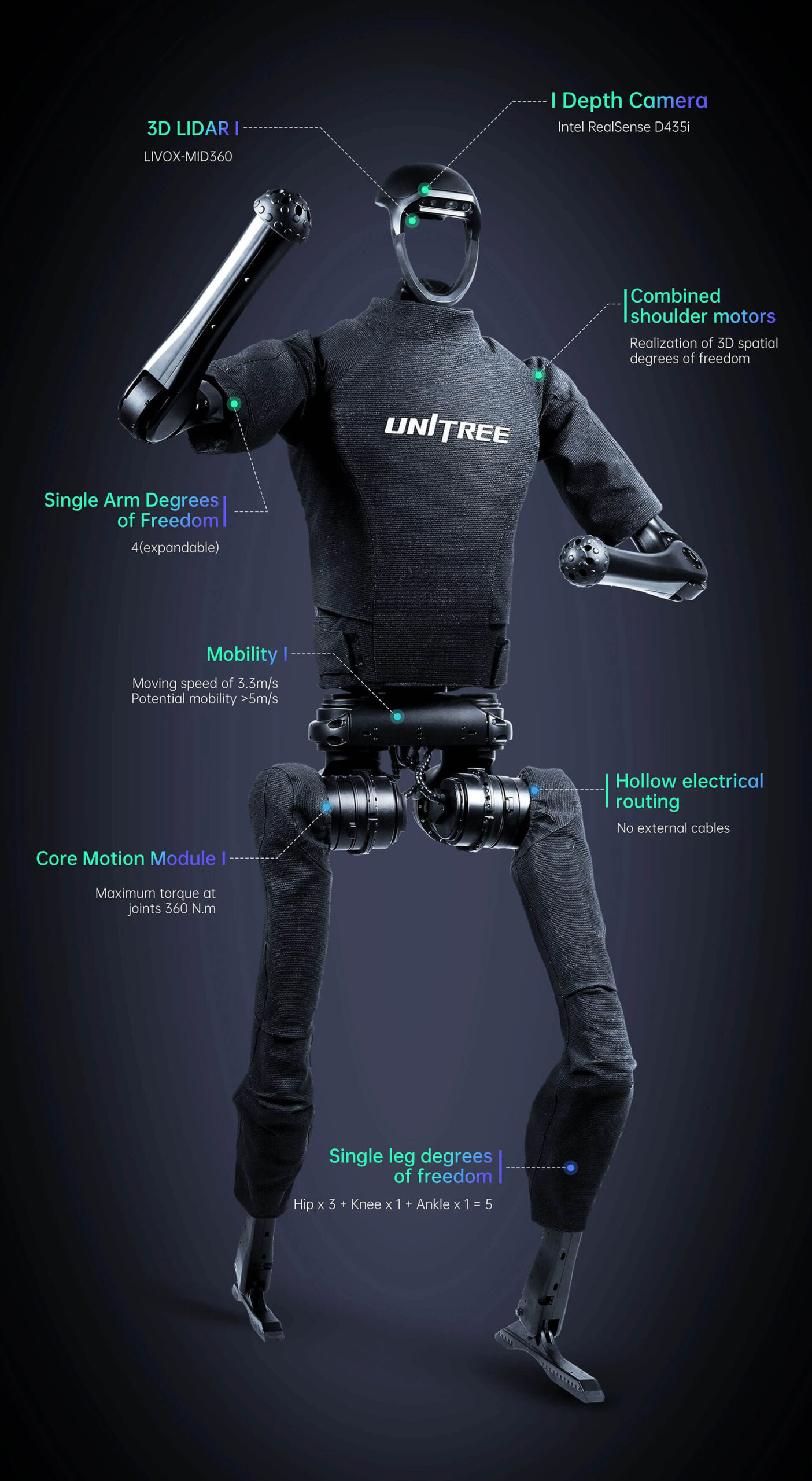

Unitree H1 Specifications

Height	Approximately 180 cm
Weight	Approximately 47 kg
Walking Speed	Up to 3.3 m/s
Potential Mobility	Exceeds 5 m/s
Peak Torque Density	189 N·m/kg
Maximum Joint Torque	360 N·m
Battery Capacity	15 Ah (0.864 kWh), Max Voltage 67.2V
Degrees of Freedom (DOF)	Legs: 5 (Hip ×3, Knee ×1, Ankle ×1); Arms: 4 (Expandable)
Sensors	3D LiDAR, Depth Camera
Computing Power	Intel Core i5/i7 (Standard), NVIDIA Jetson Orin NX (Optional)
Joint Output Bearing	Industrial-grade crossed roller bearings
Core Joint Motor	Low inertia high-speed internal rotor PMSM

Unitree H1 Applications

Industrial Inspection

Navigate and assess complex industrial environments, identifying anomalies and ensuring operational efficiency.

Fire Rescue Operations

Operate in hazardous conditions to assist in search and rescue missions, delivering supplies, and providing real-time data to first responders.

Education & Research

Serve as a platform for advanced robotics research, AI development, and educational purposes in academic institutions.

Entertainment & Demonstrations

Perform dynamic movements, dances, and interactive demonstrations for events and media productions.

Exploration & Mapping

Conduct autonomous exploration and mapping in challenging terrains and environments.

Integration & Support

Testimonials

Ahmed R., Operations Supervisor Saudi Arabia

The Unitree H1’s ability to achieve walking speeds of up to 3.3 m/s is remarkable. It has revolutionized our industrial inspections, allowing us to cover large areas efficiently.

— Dr. Emily T., Robotics Scientist Oman

The H1’s advanced sensors and modular design have been instrumental in our robotics research. Its 360° environmental awareness and high torque performance make it a standout in the field.

Priya N., STEM Educator Dubai

The Unitree H1 has been a game-changer for our STEM programs. Its intelligent control systems and fluid movements captivate students and provide hands-on learning opportunities.

Carlos M., Emergency Response Specialist Saudi Arabia

The H1’s robust construction and quick battery replacement feature make it ideal for our fire rescue operations. It performs reliably in hazardous conditions, providing critical support.

Liam F., AI Engineer Qatar

The Unitree H1 combines cutting-edge technology with real-world applications. Its advanced AI capabilities and modular design make it a versatile tool for exploration and mapping.

Elevate your operations with the Unitree H1 humanoid robot.

Frequently Asked Questions

What are the key specifications of the Unitree H1?

The Unitree H1 is a full-size general-purpose humanoid robot approximately 180 cm tall, weighing around 47 kg. It features high joint torque, rapid mobility, and integrated sensing such as 3D LiDAR and depth cameras to support advanced perception and movement capabilities.

What development tools and integrations are available for the Unitree H1?

The H1 robot includes a software development kit and supports ROS2 integration. It comes with sensor modules like LiDAR and depth cameras. It also offers simulation tools to build advanced robotic projects. This helps users create custom software, test algorithms, and connect the robot to broader systems .

What makes the Unitree H1 different from other humanoid robots?

The Unitree H1 grabs attention with its mix of speed, stability, and lightweight build. Engineers equipped it with advanced sensors and actuators giving it fluid movement quick mobility, and better balance than many similar robots out there.

How fast can the Unitree H1 move?

The Unitree H1 can walk and run at speeds reaching about 5 to 6 km/h. Its performance depends on the surface and setup. The robot is designed to handle steady and active movement both indoors and outdoors.

Is the Unitree H1 suitable for educational or research institutions?

Of course. Universities, robotics labs, and innovation centers often use the H1 to study AI, control systems, mechatronics, and machine learning. Its open development tools make it great to experiment with and use in research projects.

What kind of sensors does the H1 use?

The robot uses a rechargeable lithium-ion battery. This battery allows it to work for several hours, but the actual time depends on how much it moves and the hardware it connects to. You can swap extra batteries to keep it running without interruptions.

What power source does the Unitree H1 use?

Is the Unitree H1 safe to operate around humans?

Yes. The H1 humanoid robot includes advanced safety features. These features include torque sensing, obstacle detection, and smooth motion systems. It is safe to use near people during demonstrations, research, or when interacting if handled .

Where can I purchase the Unitree H1 Humanoid Robot in Dubai, UAE?

You can buy the Unitree H1 humanoid robot from Ednex Automation. They are the official distributor based in Dubai, UAE, and serve businesses in Saudi Arabia, Kuwait, Qatar, Bahrain, and Oman.

Does Ednex Automation provide support and installation for the Unitree H1 in the GCC?

Yes. Ednex Automation takes care of installation, setup, user training, and technical support for the Unitree H1 robot across the UAE and the whole GCC region, including countries like Saudi Arabia, Kuwait, Qatar, Bahrain, and Oman.
