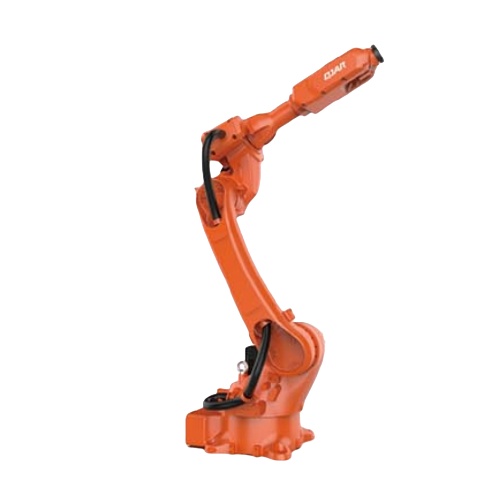

QJR12-1700
High-Speed 6-Axis Robotic Arm for Precision Automation
Overview

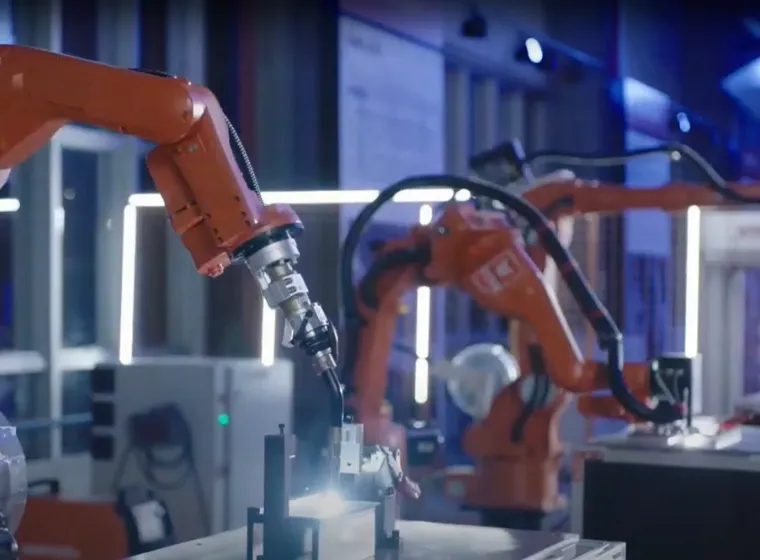

The EVS QJR12-1700iis a 6-axis industrial robotic arm designed for high-speed and high-precision applications. With a payload capacity of 12 kg and an extended reach of 1792 mm, it is ideal for tasks such as spraying, loading and unloading, handling, sorting, and assembly. Its compact design allows for flexible installation in both ground and ceiling-mounted configurations, making it suitable for various industrial environments.
Features & Benefits
High Payload Capacity
Handles payloads up to 12 kg, suitable for medium-duty applications.
Extended Reach
Offers a maximum reach of 1792 mm, enabling access to larger workspaces.

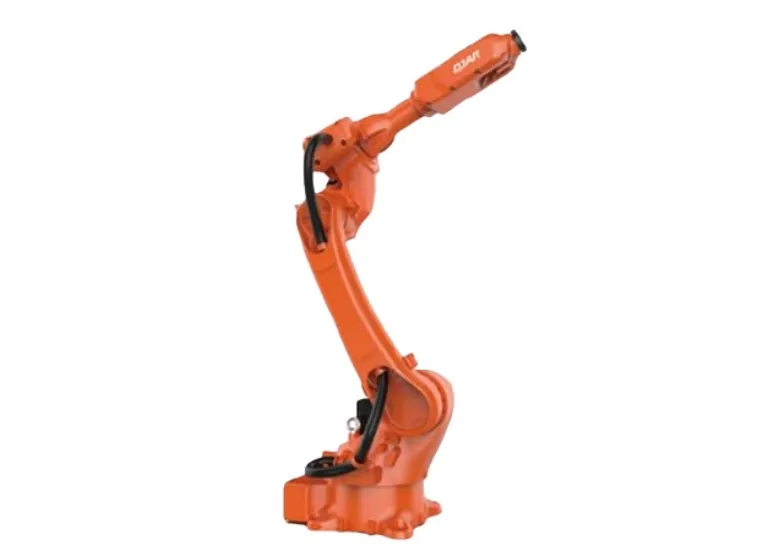

Precision
Achieves a repeatability of ±0.05 mm, ensuring high accuracy in operations.

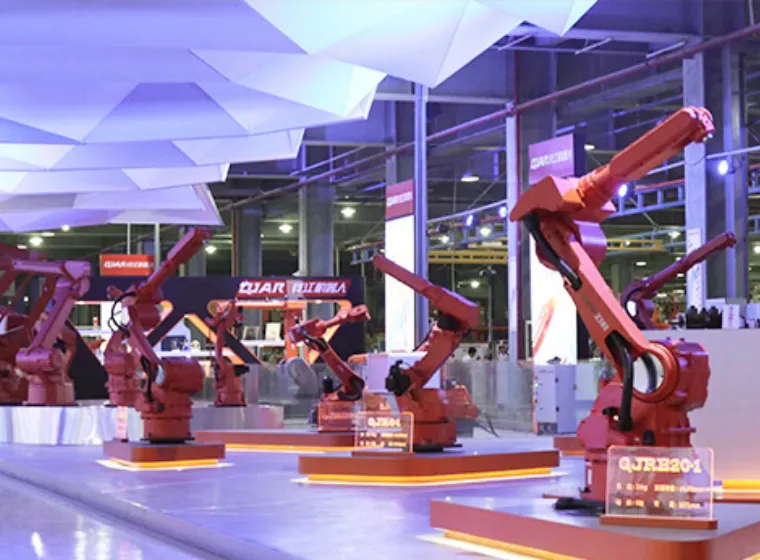

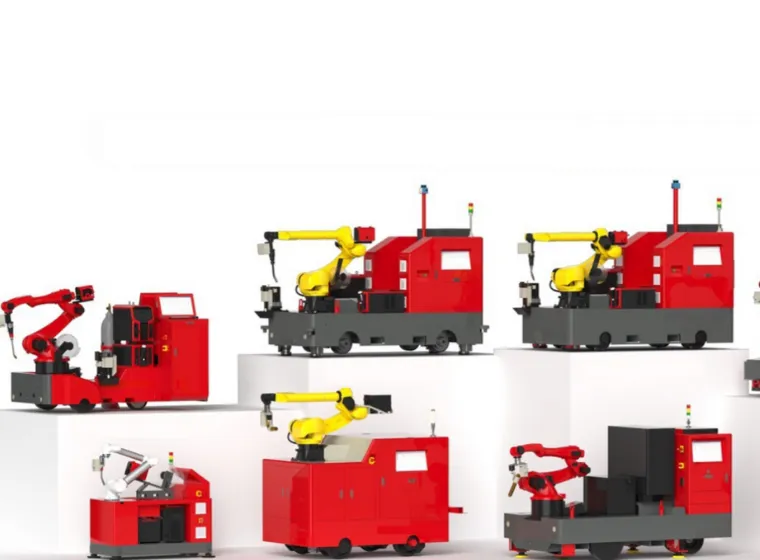

Flexible Deployment
Supports installation in both ground and ceiling-mounted orientations, providing adaptability to various production lines.

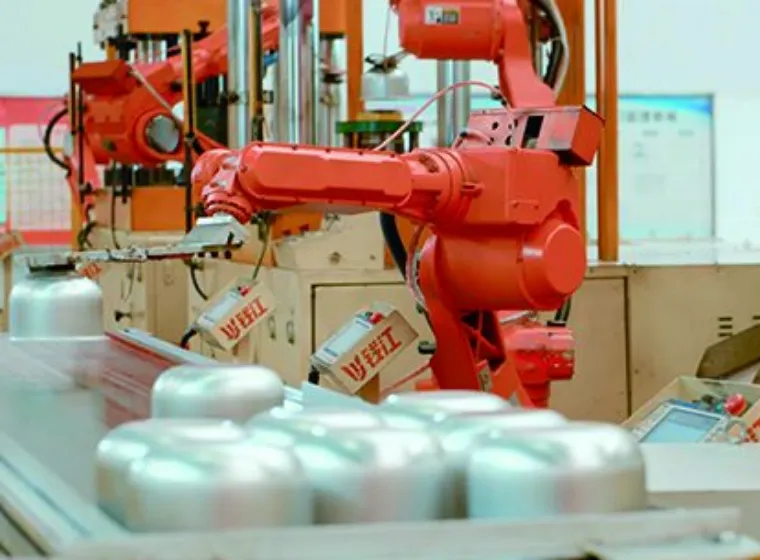

High-Speed Operation
Features rapid joint speeds, enhancing productivity in time-sensitive tasks.

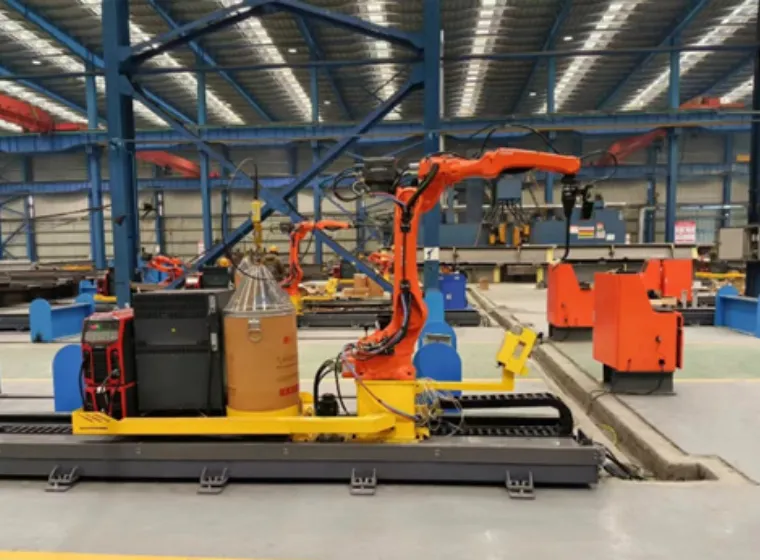

Robust Construction
Built with durable materials, offering longevity and stability.
| Specification | Details |
|---|---|
| Model | QJR12-1700 |
| Degrees of Freedom (DoF) | 6 rotating joints |
| Payload Capacity | 12 kg |
| Maximum Reach | 1792 mm |
| Repeatability | ±0.05 mm |
| Motion Range | J1: ±175°, J2: +159°/-95°, J3: +95°/-125°, J4: ±185°, J5: ±115°, J6: ±360° |
| Maximum Joint Speeds | J1–J3: 189°/s, J4: 372°/s, J5: 573°/s, J6: 687°/s |
| Allowable Torque | J4: 28 N·m, J5: 28 N·m, J6: 26.4 N·m |
| Inertia Moment | J4: 1.2 kg·m², J5: 1.4 kg·m², J6: 0.7 kg·m² |
| Robot Body Weight | 240 kg |
| Power Capacity | 3.6 kVA |
| Power Supply | Single-phase 220V ±10% |
| Control Cabinet Size | 600 × 480 × 920 mm |
| Control Cabinet Weight | 95 kg |
| Mounting Orientation | Ground-mounted or ceiling-mounted |
| Applications | Handling, assembly, sorting, loading and unloading, spraying |
EVS QJR12-1700 - Applications
Spraying
Automate painting and coating processes with precision and consistency.
Material Handling
Efficiently move materials within production facilities.
Assembly Operations
Perform precise assembly tasks in electronics, automotive, and other industries.
Loading and Unloading
Streamline the transfer of products to and from machinery or conveyors.
Sorting
Organize products or components based on predefined criteria.
Integration & Support
Software Compatibility
Supports integration with various industrial automation systems.
Control Interfaces
Offers intuitive control via a user-friendly interface.
Safety Features
Incorporates advanced safety mechanisms to ensure safe operation alongside human workers.
Global Support
Access to EVS Robotics' worldwide customer support and service network.
