KUKA KR QUANTEC nano
Compact. Powerful. Reliable.
The lightest and most space-efficient robot in the KR QUANTEC series, built for precision and durability in demanding environments.
KR QUANTEC nano - Overview
The KR QUANTEC nano is KUKA’s most compact and lightweight robot, specifically engineered for high-performance tasks like spot welding, material handling, and assembly. With its small footprint, durable build, and excellent reach, it is ideal for confined workspaces without compromising on power or precision.
Features & Benefits

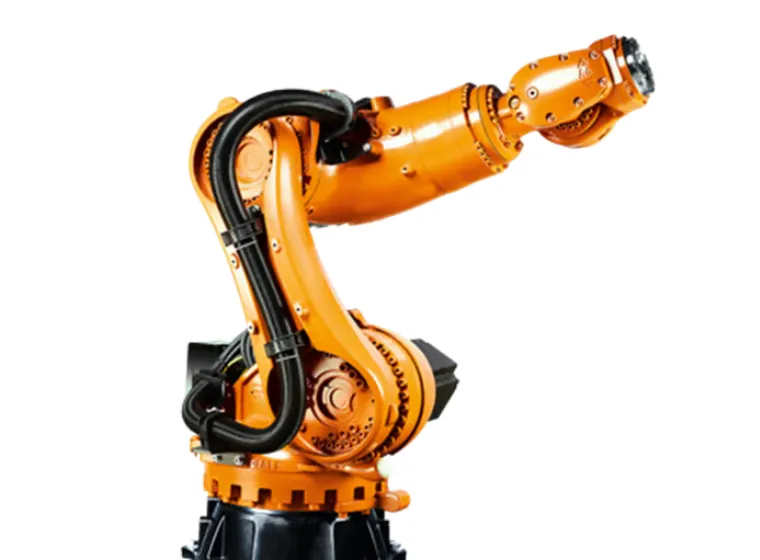

Slim & Compact Design
Fits into tight spaces with minimal disruptive contour.

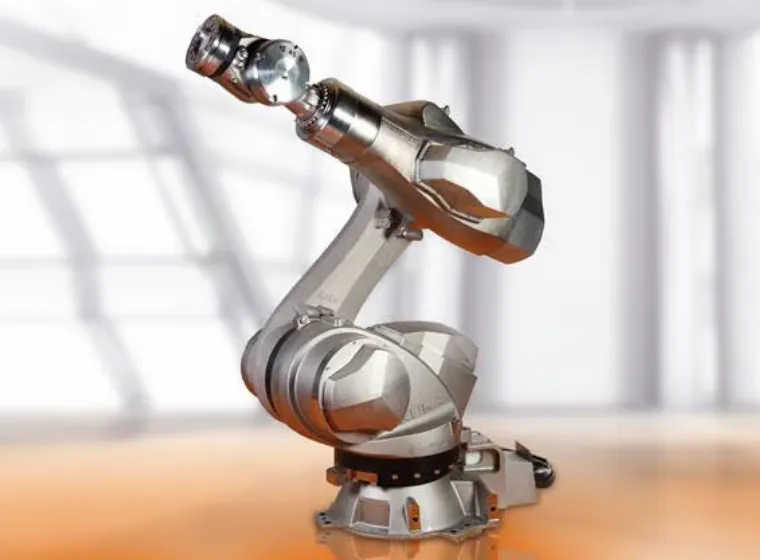

Lightest in Its Class
Enables fast, dynamic movements and easy system integration.

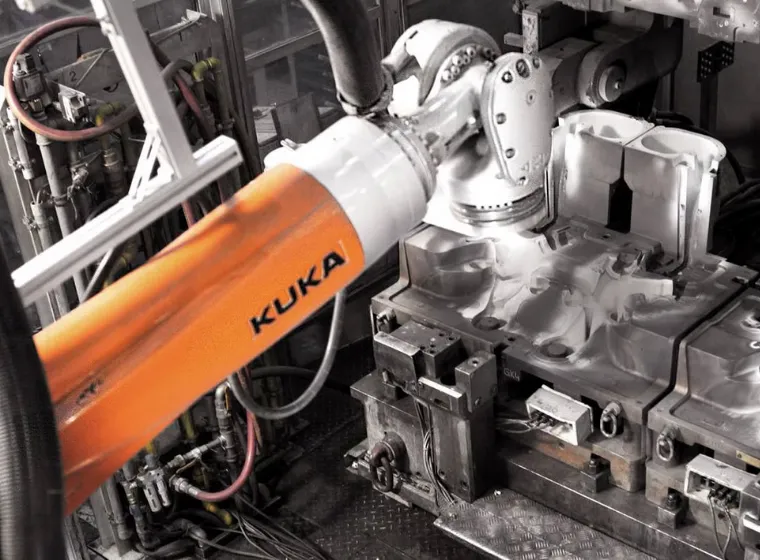

Durable Build
Cast iron construction increases rigidity and wear resistance.

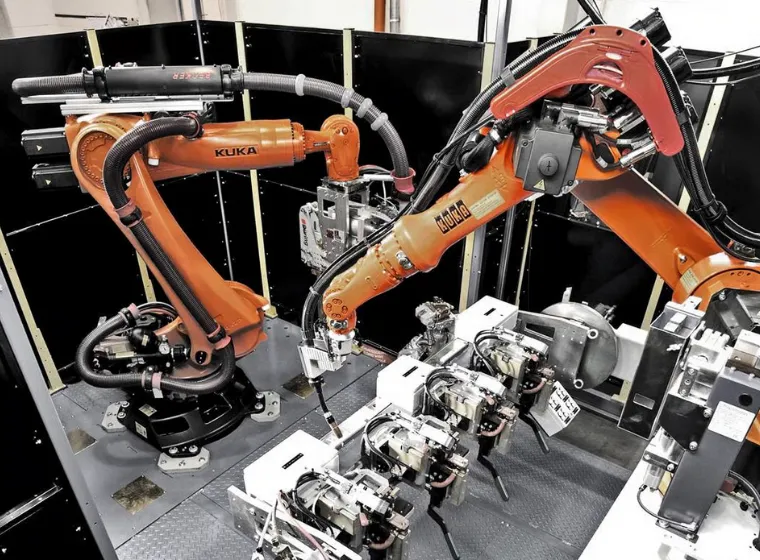

Robust Construction
Virtually wear-free drive train and reduced ecological footprint.

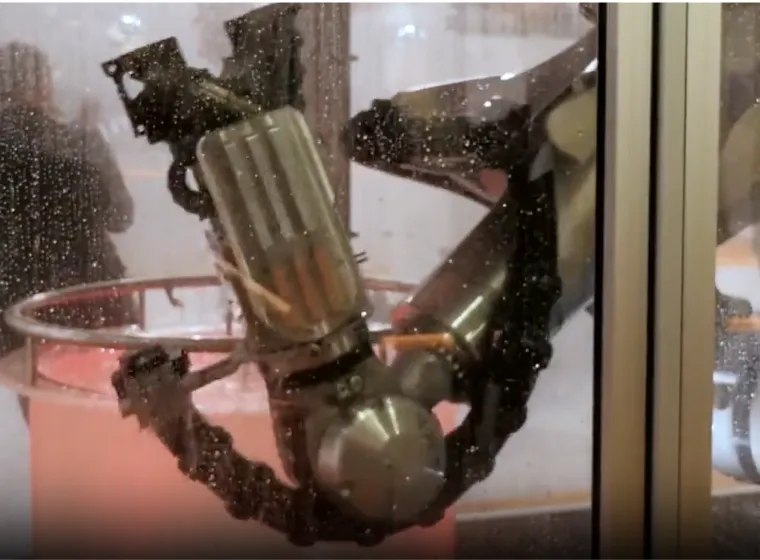

Extended Reach
Axis 3 swing-over enhances work envelope – ideal for tip dressing.

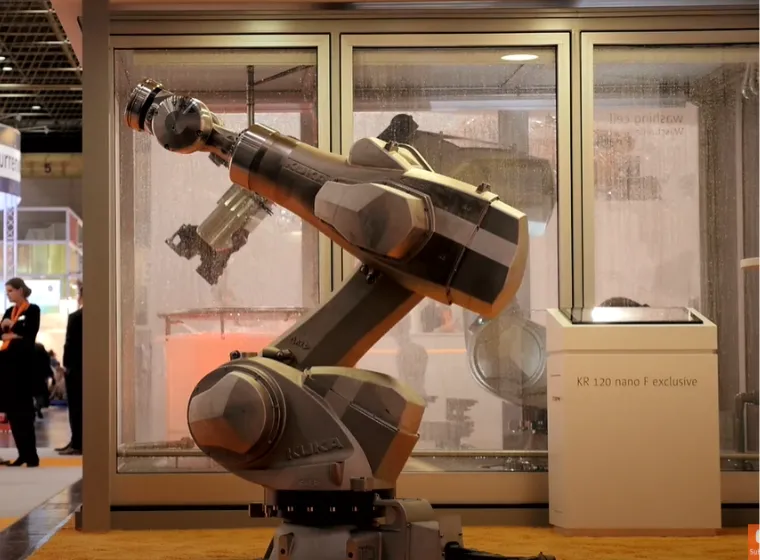

Flexible Mounting
Floor and ceiling versions available to suit any production layout.

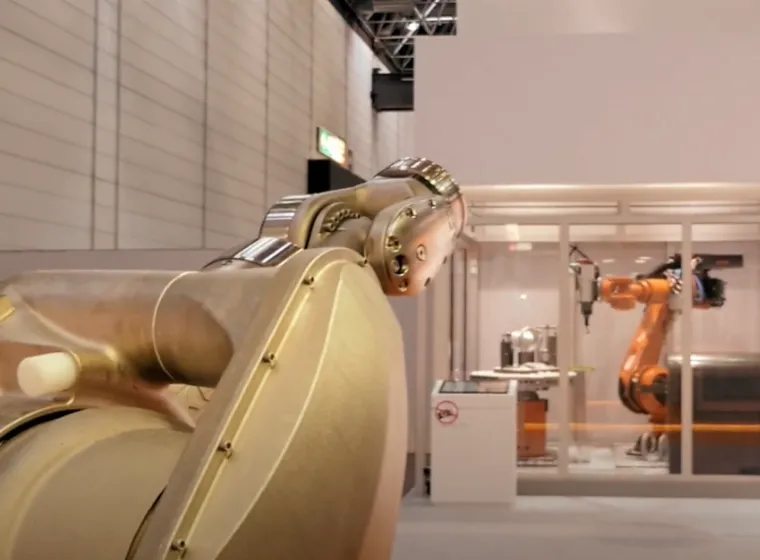

Foundry-Ready Option
F exclusive variant supports harsh environments with IP69 rating.
KR QUANTEC nano F exclusive: the new washing professional
| Model | Payload | Reach | Mounting | Protection Class | Controller | Download PDF |
|---|---|---|---|---|---|---|
| KR 120 R1800 nano | 120 kg | 1803 mm | Floor | IP 65 | KR C5 | 📄 Download |
| KR 120 R1800 nano C | 120 kg | 1803 mm | Ceiling | IP 65 | KR C4 | 📄 Download |
| KR 160 R1570 nano | 160 kg | 1573 mm | Floor | IP 65 | KR C5 | 📄 Download |
| KR 160 R1570 nano C | 160 kg | 1573 mm | Ceiling | IP 65 | KR C4 | 📄 Download |
| KR 180 R2100 nano F exclusive | 180 kg | 2100 mm | Floor | IP 65, IP 67, IP 69 | KR C5 | 📄 Download |
| KR 120 R2100 nano F exclusive | 120 kg | 2100 mm | Floor | IP 65, IP 67, IP 69 | KR C5 | 📄 Download |
KR QUANTEC nano - Applications
Spot Welding
Handling and Assembly
Washing & Foundry Environments (F exclusive)
Cutting and Material Removal
Quality Inspection and Testing
Painting, Gluing & Surface Applications
Palletizing and Packaging
Measuring and Laser Tasks
Integration & Support
The KR QUANTEC nano is part of the advanced KUKA robotics ecosystem, ensuring seamless integration with:
KUKA KR C5 / KR C4 Controllers
KUKA Work Visual programming environment
Global service and technical support network
Compatible with Industry 4.0 solutions and MES/ERP systems
