Pudu Kettybot Pro
Delivery, Reception & Ad-Display Robot for
High-Traffic Service Environments
Kettybot Pro Overview
KettyBot Pro is a multi-tasking service robot designed for delivery, reception, and in-venue marketing. It combines sleek, minimal design with intelligent features to serve tables, display advertisements, greet guests, and operate in crowded, dynamic indoor spaces. With compact dimensions and robust navigation systems, it’s built for places like restaurants, hotels, retail outlets, food courts, campuses, and high-traffic areas. KettyBot Pro elevates the customer experience, reduces manual workload, and adds visible branding and interaction touchpoints for businesses.
Features & Benefits

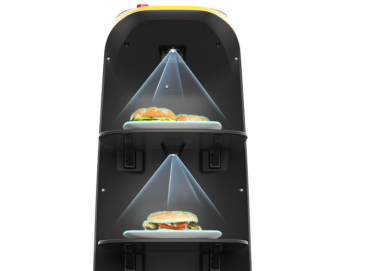

Smart Tray Detection
Using 360° fisheye lenses, KettyBot Pro automatically senses when trays are empty, meaning more efficient delivery cycles and less idle time.

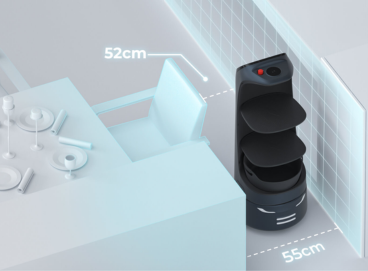

Superior Mobility & Compact Design
The forward-leaning, slim “C” profile in KettyBot Pro lets the robot navigate tight aisles down to ~52 cm clearance, great for cramped corridors or busy dining layouts.

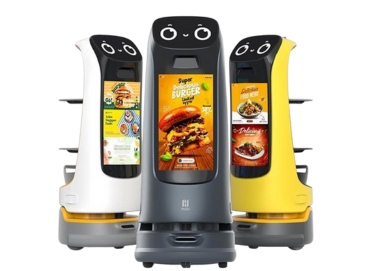

Large Ad Display & Marketing Platform
Equipped with an 18.5-inch screen for high-impact promotions, KettyBot Pro supports customizable ads, dynamic content, and voice & visual personalization via PUDU’s Open Platform.

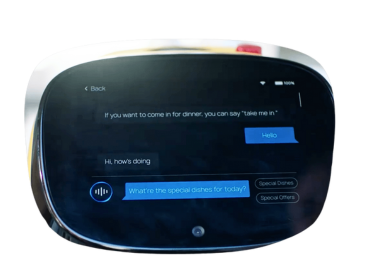

AI Voice Interaction & Guest Engagement
The robot greets customers, responds to interactions, and KettyBot Pro can lead guests to tables (“Guide Mode”) or operate in Cruise Mode to broadcast promotions or roam designated areas.

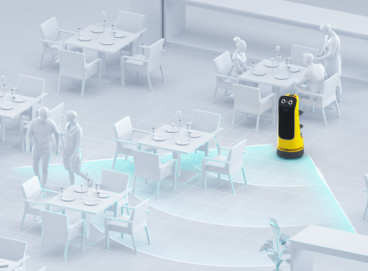

Dual Navigation System & Obstacle Avoidance
Combining laser SLAM + visual SLAM, RGBD cameras + fisheye sensors, KettyBot Pro provides 3D obstacle avoidance and more reliable operation in busy or dynamically changing spaces.
Versatile Modes of Operation
It supports multiple delivery modes, reception/greeting, advertising, table guidance, cruise, dish return etc.

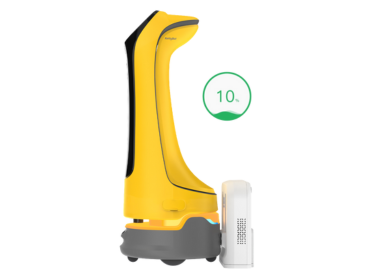

Long Runtime & Auto-Recharging
Up to ~9 hours of operation (no-load) with ~3.5-hour charge time — KettyBot Pro features battery status alerts and automatic return to docking when low.

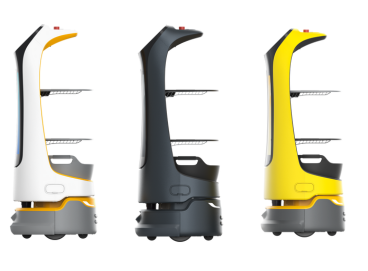

Customization & Aesthetic Options
Multiple colour schemes (e.g. “Salt White”, “Samurai Black”, “Beige Yellow”) and configurable rear covers / trays in KettyBot Pro allow matching branding and usage needs.
| Machine Dimensions (H × W × D) | ~ 1120 × 450 × 435 mm |
|---|---|
| Weight | ~ 38 kg |
| Tray Load Capacity | ~ 10 kg per tray |
| Number of Trays / Compartments | 2 trays + 1 dish-return box / removable rear cover option |
| Tray Dimensions | ~ 352 × 340 mm (~ 13.9 × 13.4 in) |
| Tray Height (between shelves) | ~ 248 / 253 / 223 mm (≈ 9.76 / 9.96 / 8.78 in) |
| Battery / Runtime | Up to 9 hours (no load) |
| Charging Time | ~ 3.5 hours |
| Maximum Speed | up to ~ 1.2 m/s |
| Minimum Clearance (Aisle Passage) | ~ 52 cm (in specific conditions) |
| Climbing / Surmounting Ability | ≤ 5° incline, height surmountable ~ 5 mm |
| Screen Display Size | 18.5-inch (advertisement / front screen) |
| Operating System & Interfaces | Android OS; PUDU Link / Merchant Management Platform; remote content management, voice settings etc. |
Kettybot Pro Applications
Restaurants & Quick Service Dining
Delivers food to tables, returns dishes, helps in guiding guests, and promotes menu items. Especially suited to compact dining layouts.
Hotels, Banquets & Events
Provides greeting/reception functionality, carries light items, advertises promotions (spa, dining, amenities), enhances guest experience.
Retail Stores / Shopping Malls
Acts as a mobile ad display, guides customers, offers samples or promotional material, assists with tray-type tasks or delivering goods inside store.
Office Buildings & Corporate Spaces
Internal delivery of documents / refreshments; broadcasts internal communications or branding; helps with reception / guiding visitors.
Hospitals / Healthcare / Assisted Living
Deliver items, reduce staff movement, display information or announcements (wayfinding, schedules, etc.).
Entertainment / Leisure Venues
Use in cruise mode during downtime, or as a display & service robot in cafés, movie theatres, lounges etc.
Integration & Support
Software & Content Management
Compatible with PUDU Open Platform / Merchant Management Platform for content scheduling, ad playback, voice & expression customization. Remote monitoring.
Navigation & Sensors
Dual-SLAM (laser + visual), multiple RGBD and fisheye cameras for 3D obstacle avoidance & tray detection.
Accessories & Modularity
Options for removable rear cover or trays; dish-return box; color choices. Accessories to tailor for specific usage.
Deployment & Maintenance
EdNex Automation will handle site survey, installation, mapping, staff training, spare parts & warranty support, preventive maintenance.
