Unitree B2-W

High-Performance Wheeled Quadruped
Robot for Advanced Applications

Combining agility, intelligence, and adaptability for diverse real-world scenarios.

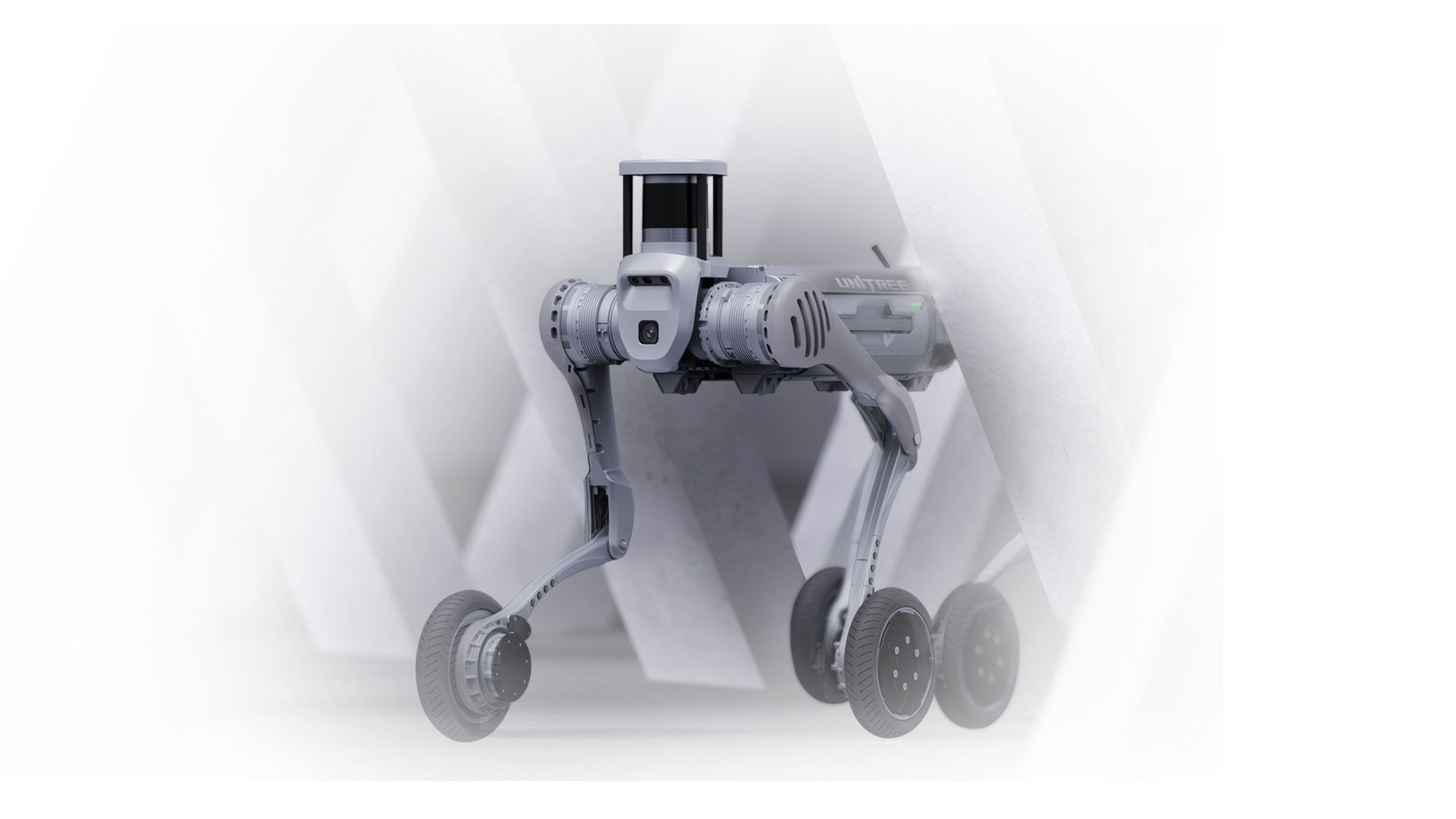

Unitree B2-W Overview

The Unitree B2-W is a cutting-edge, high-performance quadruped robot dog designed for demanding industrial and research applications. Boasting exceptional payload capacity, robust build quality, and advanced AI-driven navigation, the B2-W robot excels in challenging environments.

Features & Benefits

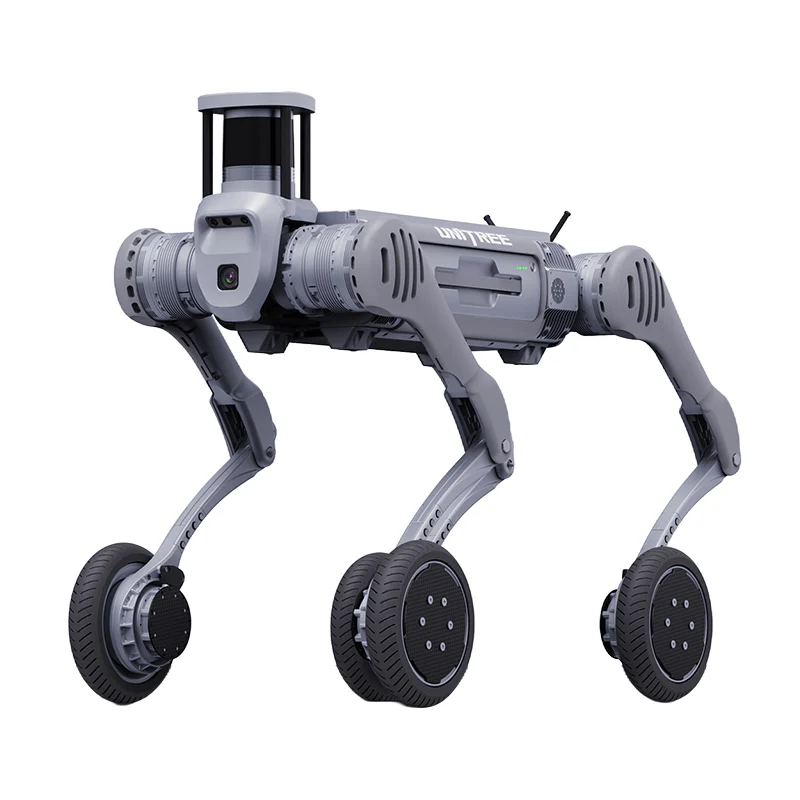

Exceptional Speed

Achieves running speeds up to 15 km/h, making B2W robot one of the fastest quadruped robots in its class.

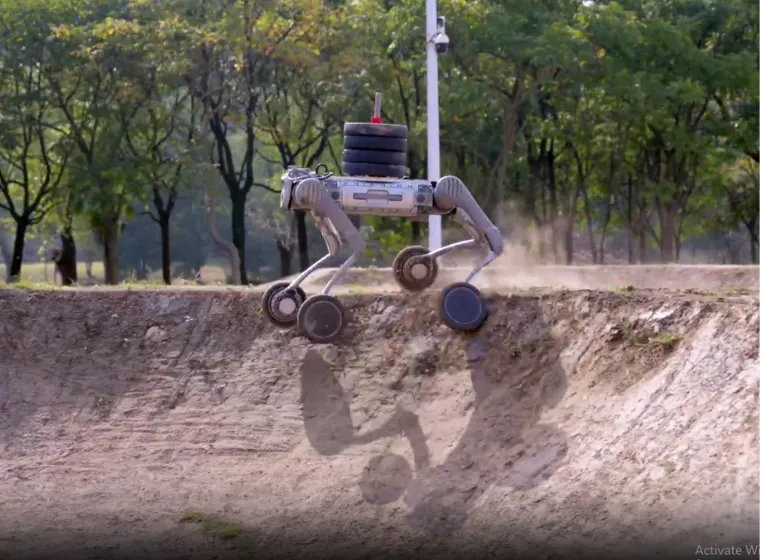

High Payload Capacity

Supports a standing load of up to 120 kg and a continuous walking load exceeding 40 kg.

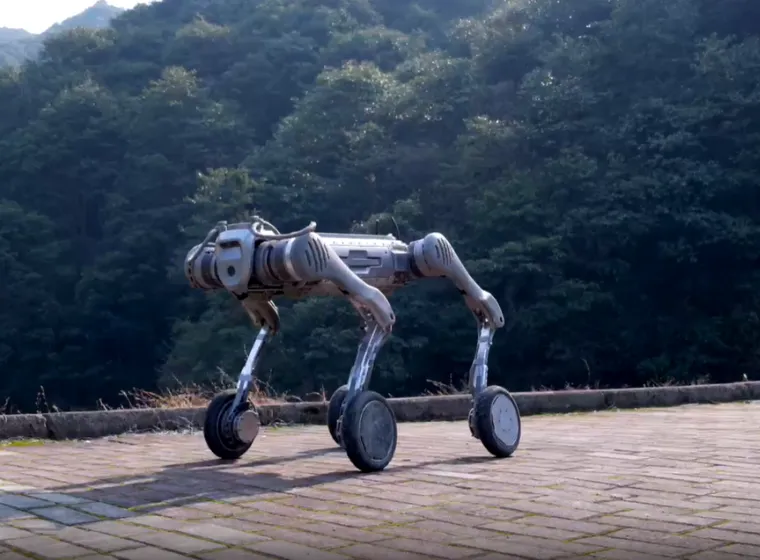

Advanced Mobility

Capable of climbing 40 cm stairs, handling slopes over 45°, and B2W can jump distances greater than 1.6 m.

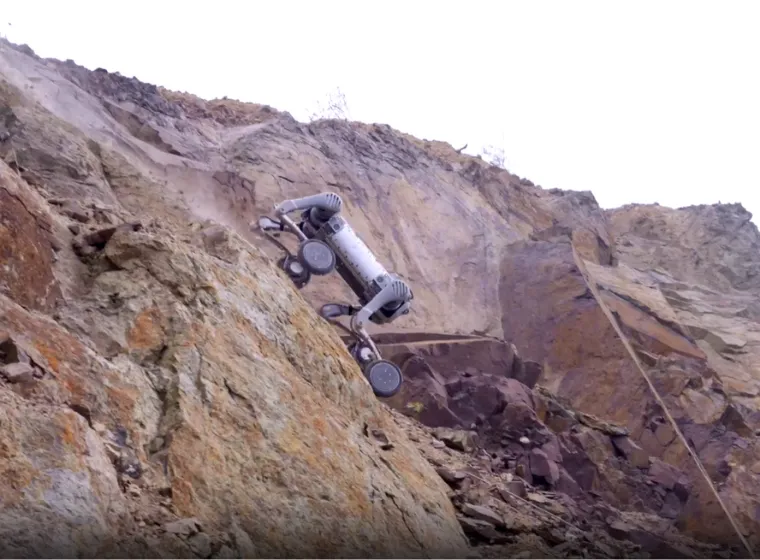

Long Endurance

B2-W robot offers over 4 hours of operation without load and a range of over 25 km with a 40 kg load.

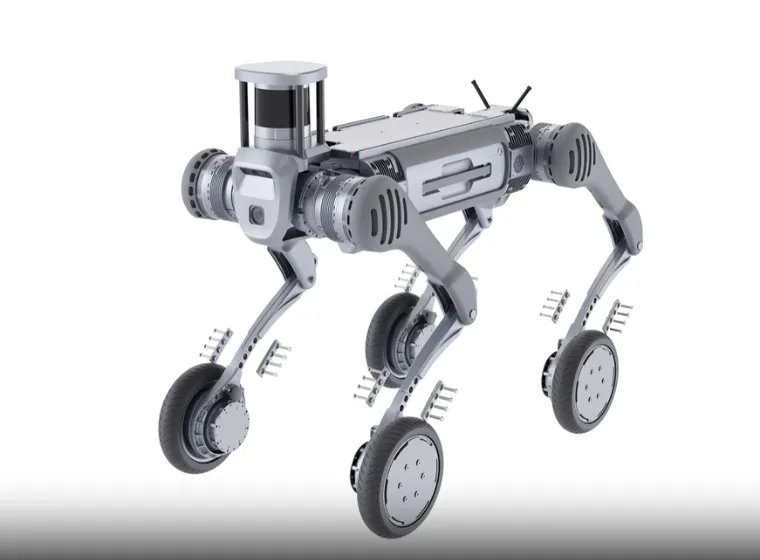

Modular Design

Equipped with interchangeable wheels and legs, allowing adaptability across various terrains.

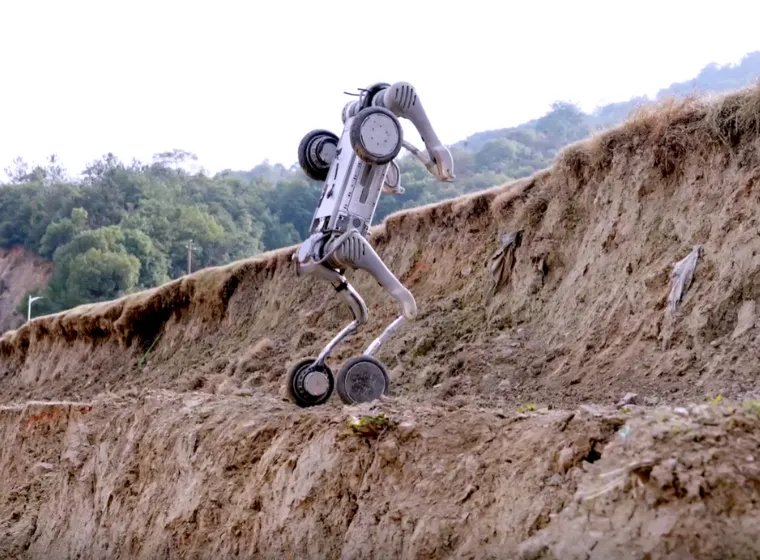

Intelligent Control Systems

Equipped with Intel Core i5/i7 processors and optional NVIDIA Jetson Orin NX, B2W delivers advanced computing and AI capabilities.

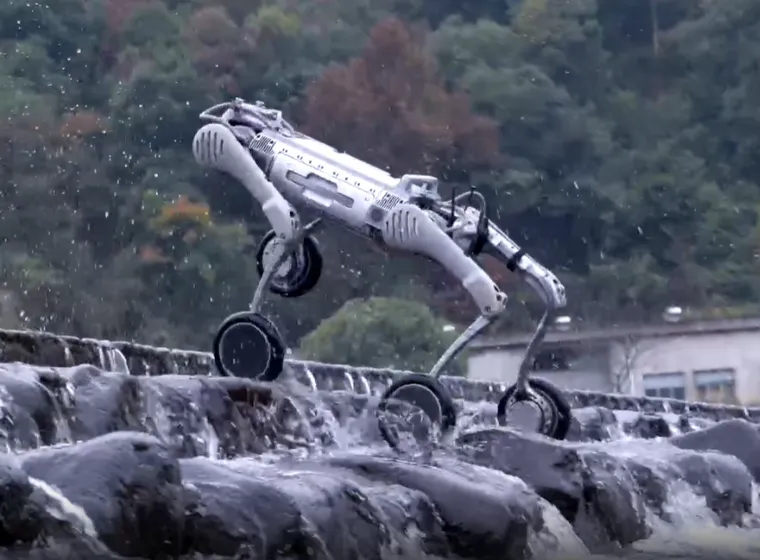

Robust Construction

Built with IP67-rated protection, ensuring durability in harsh environments.

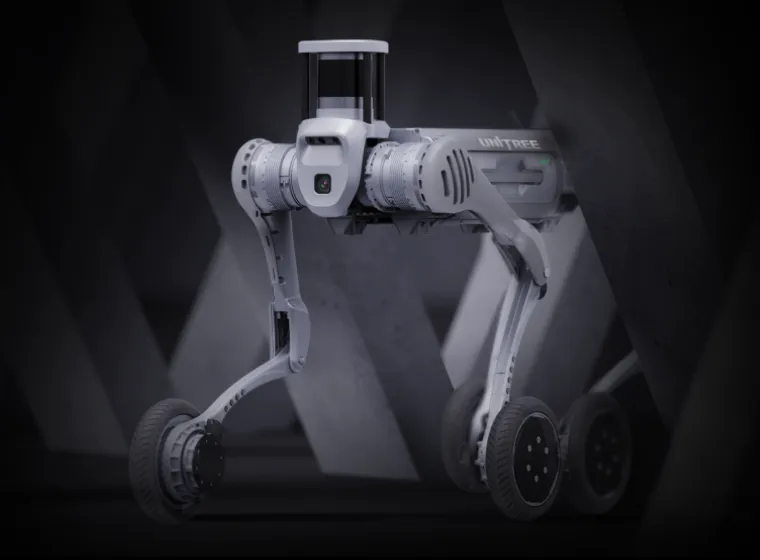

Quick Battery Replacement

Features a >2 kWh battery with quick-swap capability, and B2-W robot supports autonomous charging solutions for continuous operation.

Unitree B2-W Specifications

Dimensions (Standing)	1098 mm × 550 mm × 758 mm
Dimensions (Lying Prone)	950 mm × 550 mm × 450 mm
Weight	Approximately 85 kg (with battery)
Maximum Speed	15 km/h
Maximum Joint Torque	360 N·m
Battery Capacity	2 kWh, 58V
Operating Time	4 hours (no load), >25 km range with 40 kg load
Payload Capacity (Standing)	Up to 120 kg
Payload Capacity (Walking)	40 kg
Obstacle Crossing	Up to 40 cm
Climbing Angle	>45°
Jumping Distance	1.6 m
Ingress Protection	IP67
Operating Temperature	-20°C to 55°C
Computing Power	Intel Core i5/i7; optional NVIDIA Jetson Orin NX

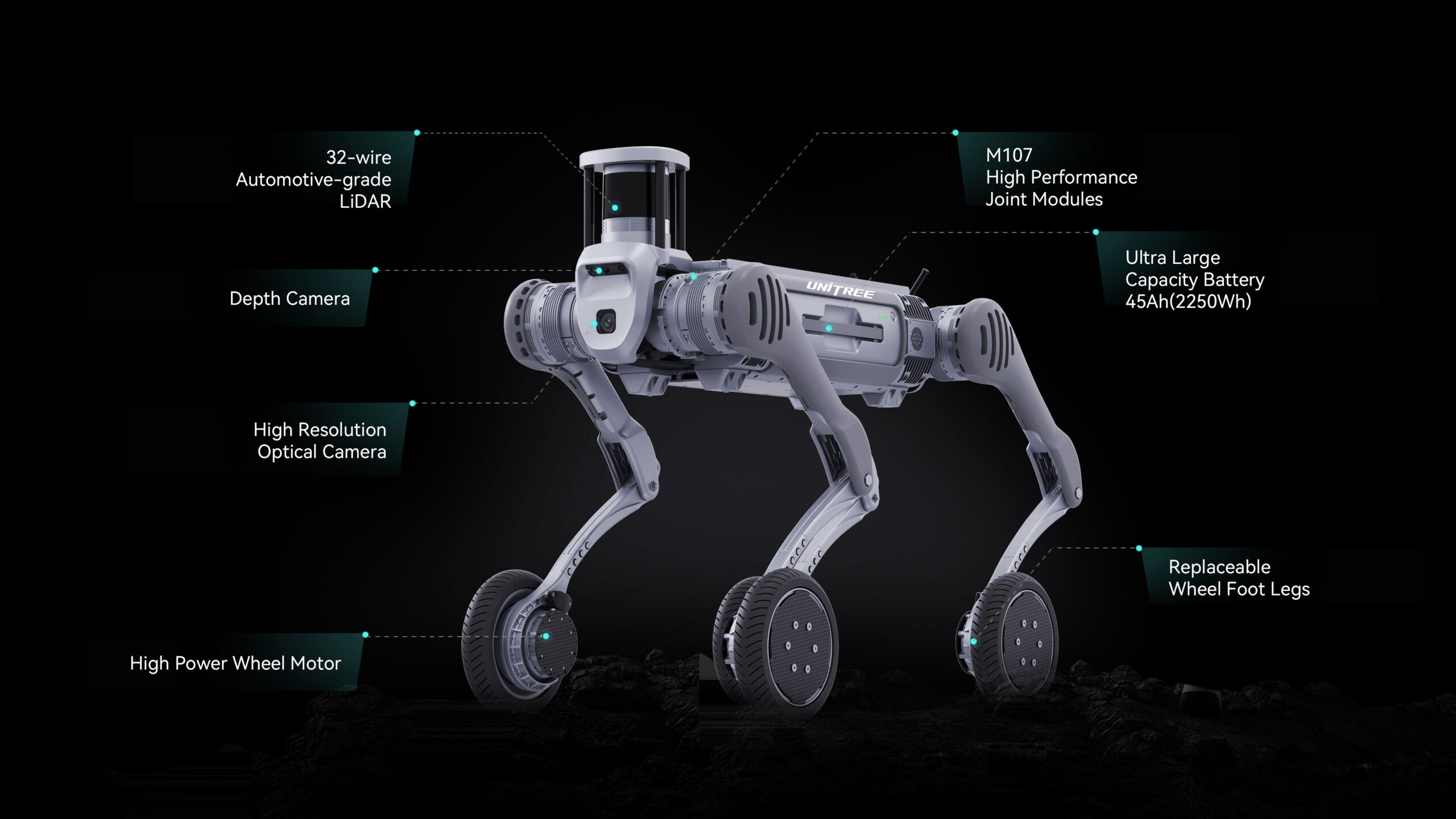

Sensors	3D LiDAR, Depth Cameras, Optical Cameras
Connectivity	1000M Ethernet, USB 3.0, Wi-Fi 6, Bluetooth

Unitree B2-W Applications

Industrial Inspection

Navigate and assess complex industrial environments, identifying anomalies and ensuring operational efficiency.

Fire Rescue Operations

Operate in hazardous conditions to assist in search and rescue missions, delivering supplies, and providing real-time data to first responders.

Education & Research

Serve as a platform for advanced robotics research, AI development, and educational purposes in academic institutions.

Security Patrols

Monitor and patrol facilities, enhancing security measures.

Logistics Support

Assist in transporting goods across challenging terrains within warehouses or distribution centers.

Integration & Support

Testimonials

Carlos M., Operations Manager Saudi Arabia

The Unitree B2-W’s hybrid wheeled-leg design is a game-changer. Its ability to switch seamlessly between terrains while maintaining speeds up to 15 km/h has revolutionized our industrial inspections.

Aisha K., Emergency Response Coordinator Dubai

The B2-W’s IP67-rated protection and robust construction make it perfect for our fire rescue missions. It performs reliably in harsh environments, providing critical support when it matters most.

Dr. Ethan L., Robotics Professor Kuwait

With its advanced AI capabilities and modular design, the Unitree B2-W has been instrumental in our robotics research. The support for NVIDIA Jetson Orin NX allows us to push the boundaries of innovation.

Priya S., Logistics Specialist Dubai

The B2-W’s ability to carry heavy loads while navigating complex terrains has streamlined our logistics operations. Its quick battery replacement feature ensures uninterrupted performance.

Luca F., AI Developer Oman

The Unitree B2-W combines cutting-edge technology with practical applications. Its long endurance, advanced sensors, and intelligent control systems make it a standout in the robotics industry.

Elevate your operations with the Unitree B2-W quadruped robot.

Frequently Asked Questions

What are the key specifications of the Unitree B2-W Quadruped Robot?

The Unitree B2-W is a robot with both wheels and legs focusing on speed and balance. It weighs about 60 kg, can carry up to 40 kg, and moves faster than 6 m/s. Its design lets it switch between using wheels or legs for movement.

What kinds of terrain can the B2-W robot handle?

The B2-W moves smoothly on various surfaces such as flat floors, gravel, inclines, and rough outdoor areas. Its legs and wheels provide good grip and stability making it capable on both indoor and outdoor terrains.

What mobility modes does the Unitree B2-W support?

The unitree B2-W uses wheeled mode to move and on flat ground. It also has a legged mode for tackling steps uneven surfaces, or barriers. The robot switches between these modes by itself based on the type of terrain it encounters.

What is the battery life of the B2-W Quadruped Robot?

The Unitree B2-W works for 4–5 hours after a single charge in normal conditions. Still, the battery life changes with how tough the terrain is how much weight it’s carrying, or how fast it is going. It includes quick-swap batteries to run longer if needed.

What sensors and hardware are included in the B2-W Robot?

It comes with advanced tools like LiDAR, depth cameras, IMUs joint torque sensors, and vision systems. These tools help it understand its surroundings better and allow it to move on its own, create maps, and dodge obstacles.

What are the main applications of the Unitree B2-W?

The B2-W works well in fields like industrial inspection, logistics, and research. Schools and universities also use it to study robotics and AI focusing on movement independent operation, and control systems. It is also useful in military and defense testing.

What safety and durability features does it have?

The Unitree B2-W comes with real-time torque control, fall-prevention algorithms, and obstacle detection. Its tough build and IP-rated parts protect it from dust, vibration, and light rain allowing it to work in harsh conditions.

How does the B2-W compare to other robots in its category?

The Unitree B2-W stands apart because of its unique hybrid design combining wheels and legs. It merges speed, stability, and agility in a single system. Unlike legged robots, it delivers better endurance and efficiency while still navigating hard terrains with great ease.

Where can I purchase the Unitree B2-W Wheeled Quadruped Robot in Dubai, UAE?

You can purchase the Unitree B2-W wheeled quadruped robot through Ednex Automation, the official distributor based in Dubai UAE. Ednex Automation also supplies the B2-W to Saudi Arabia, Kuwait, Qatar, Bahrain, and Oman.

Does Ednex Automation provide support and setup for the Unitree B2-W in the GCC?

Yes. Ednex Automation handles installation, setup, training, and ongoing assistance for the Unitree B2-W robot across the UAE and throughout GCC countries like Saudi Arabia, Kuwait, Qatar, Bahrain, and Oman.
