AgileX BUNKER PRO
Rugged Tracked UGV for Extreme Terrains
Engineered for superior mobility and durability in challenging conditions.
BUNKER PRO Overview
The AgileX BUNKER PRO is a heavy-duty tracked unmanned ground vehicle (UGV) designed for high-performance operations in the most demanding environments. With its robust construction, advanced suspension system, and high ingress protection rating, the BUNKER PRO excels in off-road mobility, making it ideal for applications such as industrial inspections, exploration, and research.
Features & Benefits

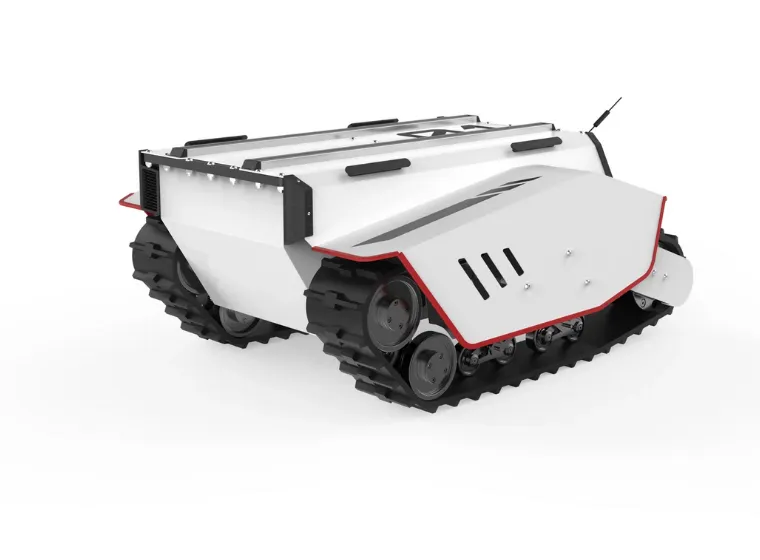

Superior Off-Road Performance

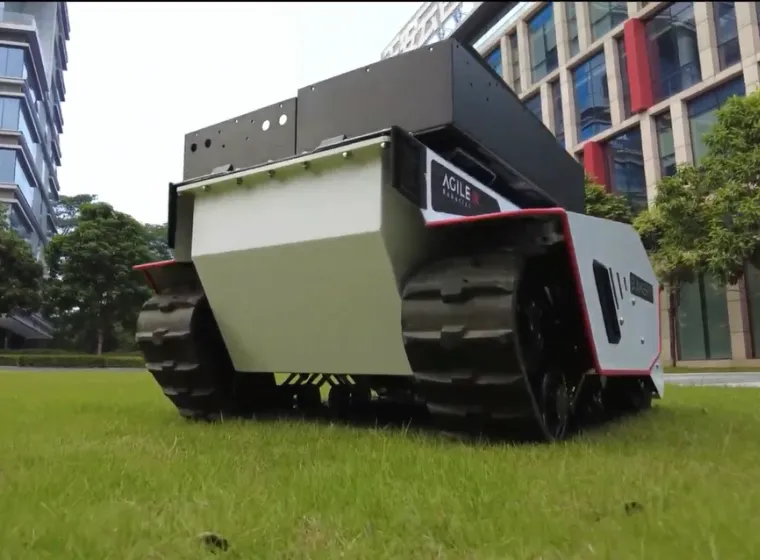

The Bunker Pro is equipped with a multi-link advanced suspension system and reinforced shock absorbers, ensuring smooth traversal over rough terrains.
High Payload Capacity
The Bunker Pro supports up to 120 kg, accommodating various sensors and equipment for diverse applications.

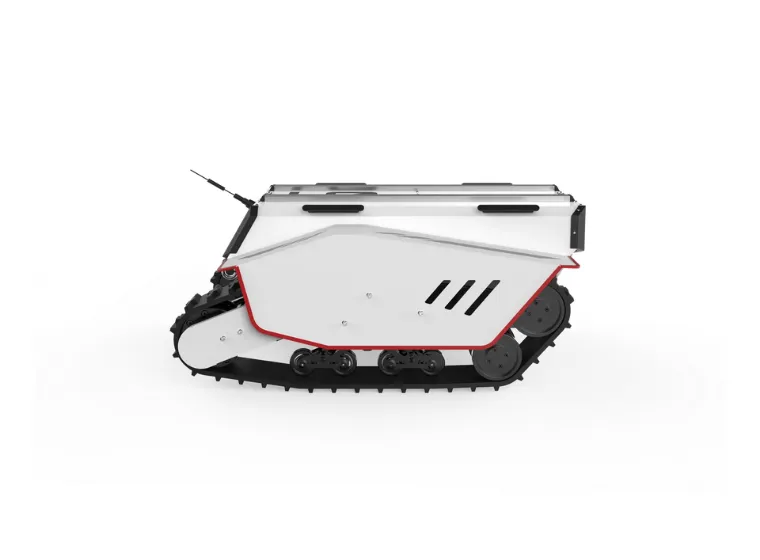

Robust Construction
Featuring an anti-collision steel exterior and an IP67 ingress protection rating, the Bunker Pro provides superior resistance against dust and water immersion.

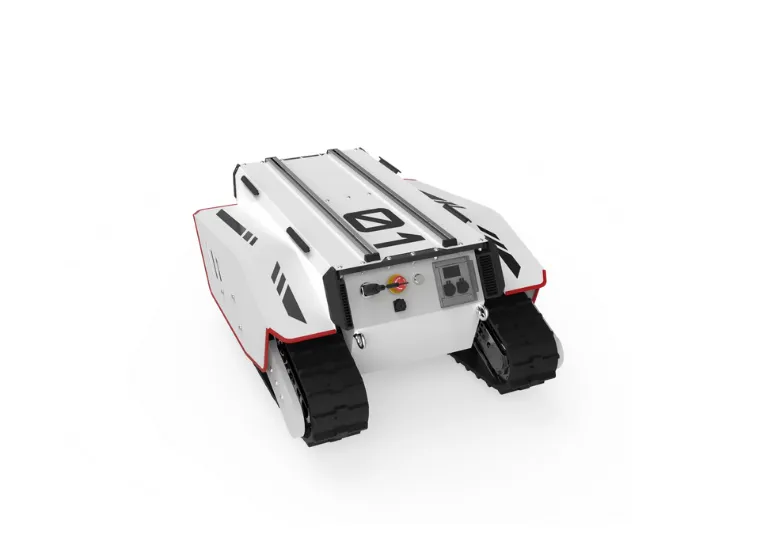

Advanced Maneuverability
The Bunker Pro is capable of seamless spot rotations by independently driving its tracks in opposing directions, facilitating precise movements in confined spaces.
Modular Design
Aluminum T-slot rails on the Bunker Pro allow for secure mounting of external sensors or kits, supporting customization and expansion.
Development-Friendly
The Bunker Pro supports CAN bus protocol and offers open-source SDKs for seamless integration and customization.
| Specification | Details |
|---|---|
| Dimensions (L×W×H) | 1064 × 845 × 473 mm |
| Weight | 150 kg |
| Payload Capacity | 120 kg |
| Maximum Speed | 1.5 m/s |
| Runtime | Up to 3 hours (no load) |
| Battery | 48V 60Ah Lithium |
| Charging Time | Approximately 4.5 hours |
| Drive System | Dual 1500W brushless servo motors |
| Suspension | Multi-link independent suspension with reinforced shocks |
| Ground Clearance | 120 mm |
| Obstacle Clearance | 180 mm |
| Maximum Climbing Angle | 30° |
| Operating Temperature | -20°C to 60°C |
| Ingress Protection Rating | IP67 |
| Communication Interfaces | CAN bus |
| Control Modes | Remote control via RC transmitter, CAN-based commands |
| Programming Support | Open-source SDK, ROS compatibility |
AgileX BUNKER PRO - Applications
Industrial Inspections
Conduct inspections in hazardous or hard-to-reach areas within industrial facilities.
Research & Development
Ideal for robotics research, algorithm testing, and educational purposes, the Bunker Pro delivers versatility and reliability.
Construction
Assist in transporting materials and equipment across construction sites.
Agriculture
Support tasks such as crop monitoring and data collection in agricultural fields.
Logistics
Additionally, the Bunker Pro enhances warehouse operations through autonomous material handling and efficient navigation.
Integration & Support
Sensor Integration
Compatible with LiDAR, cameras, GPS, and other sensors for enhanced functionality.
Software Compatibility
Supports ROS (Robot Operating System) for advanced programming and control.
Expansion Ports
Equipped with CAN bus and serial interfaces for easy integration of additional modules.
Documentation & Resources
Comprehensive manuals and SDKs available for developers and engineers.
