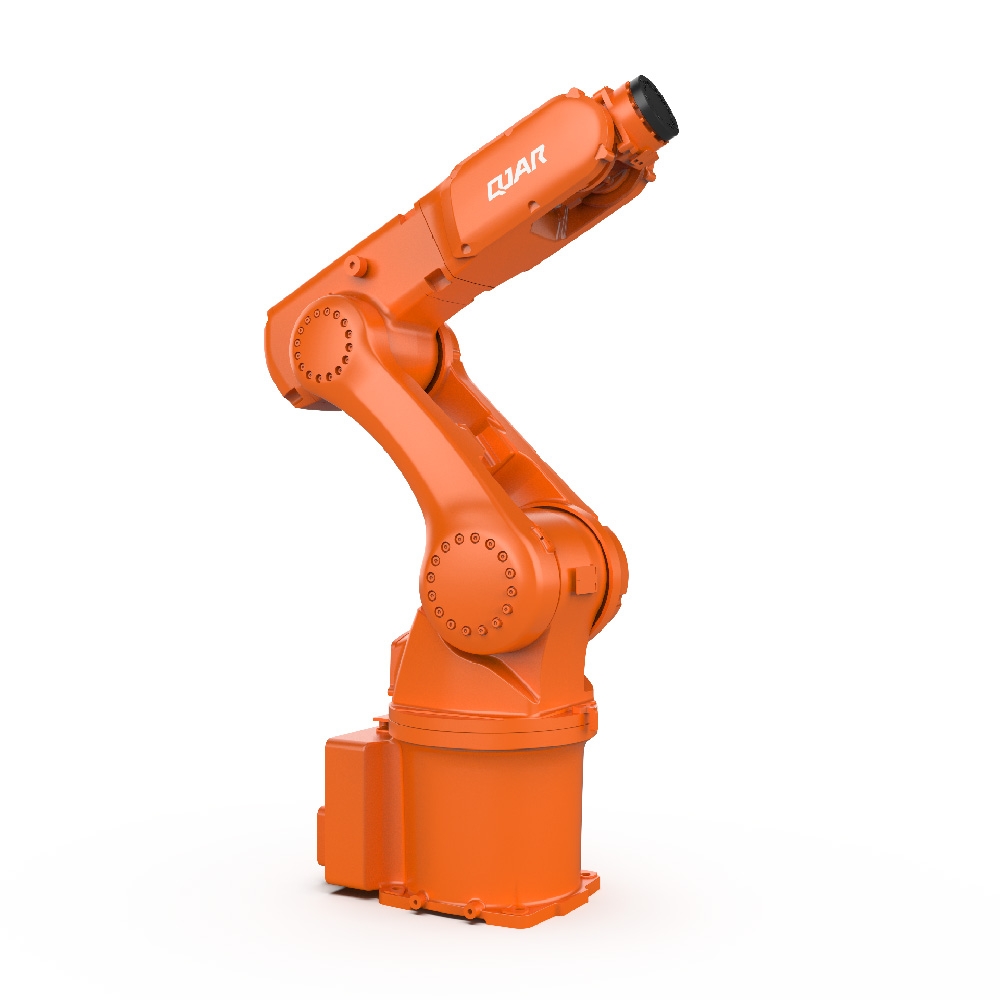

QJR8-700
Compact and Precise 6-Axis Palletizing Robot
Overview
The EVS QJR8-700 is a 6-axis palletizing robot designed for applications requiring high precision and adaptability. With an 8 kg payload and a 744 mm reach, it combines industrial-grade performance with ease of use, making it suitable for various manufacturing environments. Its compact design and advanced features ensure seamless integration into existing workflows.
Features & Benefits
High Precision
Achieves a repeatability of ±0.02 mm, ensuring accurate operations.

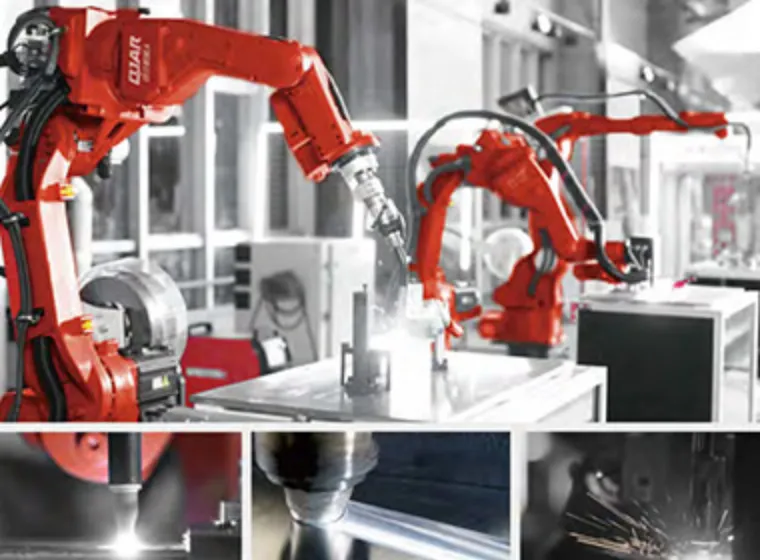

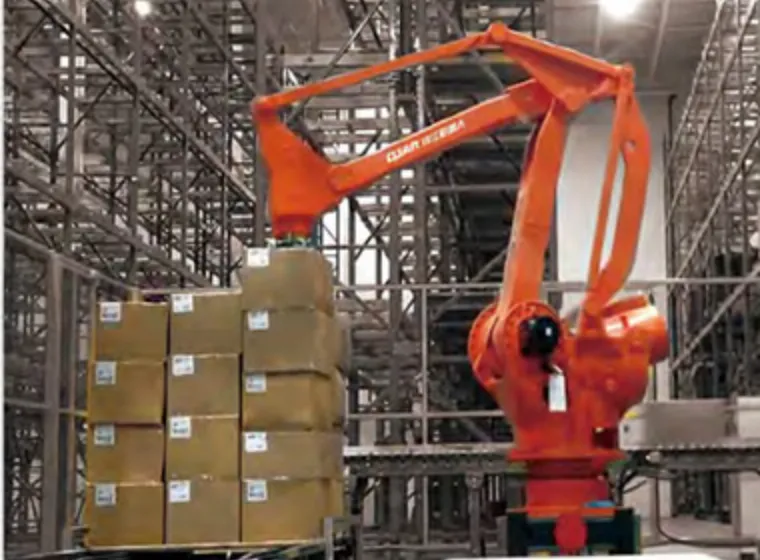

Compact Design
With a weight of approximately 45 kg, it fits easily into various workspaces.

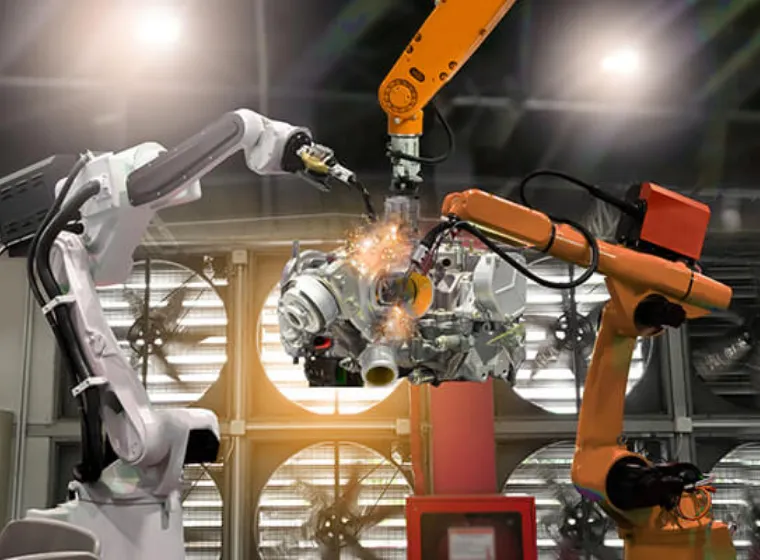

Flexible Deployment
Supports installation in both ground and ceiling-mounted orientations, providing adaptability to various production lines.

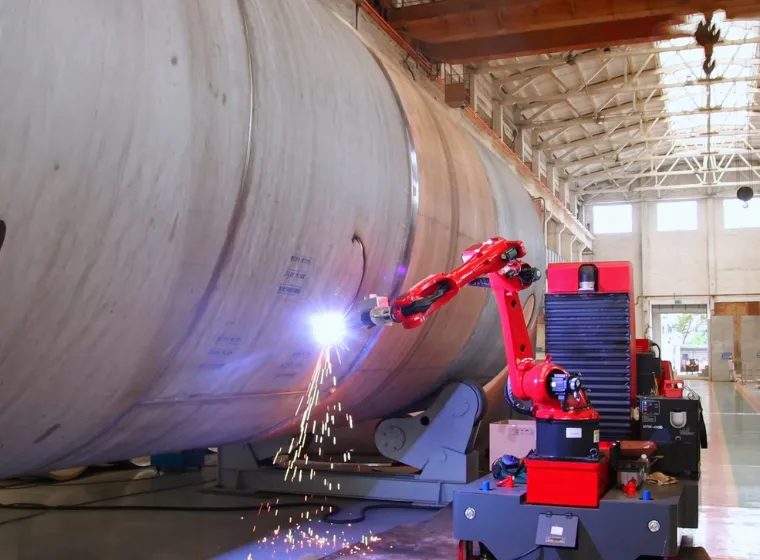

High-Speed Operation
Features rapid joint speeds, enhancing productivity in time-sensitive tasks.
Robust Construction
Built with durable materials, offering longevity and stability.

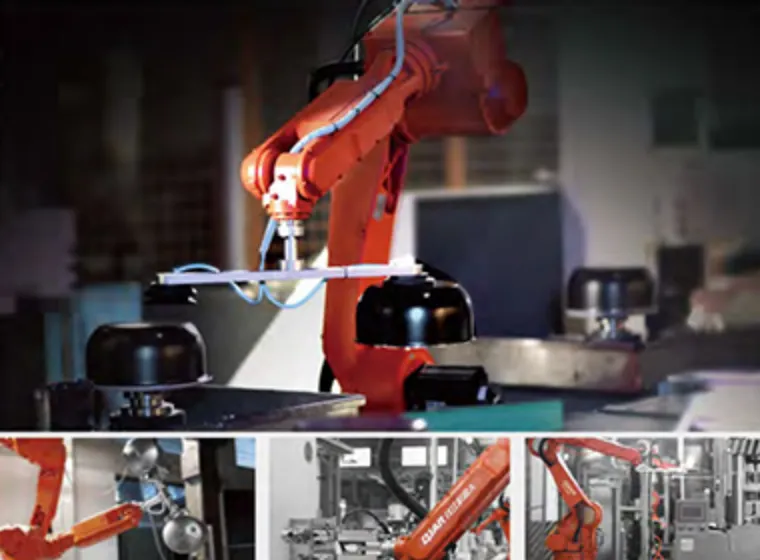

Environmental Resistance
IP65 rated, suitable for various industrial conditions.
| Specification | Details |
|---|---|
| Model | QJR8-700 |
| Degrees of Freedom (DoF) | 6 rotating joints |
| Payload Capacity | 8 kg |
| Maximum Reach | 744 mm |
| Repeatability | ±0.02 mm |
| Motion Range | J1: ±182°, J2: +132°/-98°, J3: +65°/-190°, J4: ±172°, J5: ±125°, J6: ±360° |
| Maximum Joint Speeds | J1–J2: 320°/s, J3: 401°/s, J4–J5: 429°/s, J6: 687°/s |
| Allowable Torque | J4: 33.6 N·m, J5: 18.4 N·m, J6: 15.8 N·m |
| Inertia Moment | J4: 1.21 kg·m², J5: 0.87 kg·m², J6: 0.42 kg·m² |
| Robot Body Weight | 45 kg |
| Power Capacity | 1.5 kVA (Yaskawa 1.0 kVA) |
| Mounting Orientation | Ground-mounted or ceiling-mounted |
| Operating Temperature | 0–45°C |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Vibration Resistance | <4.9 m/s² (0.5G) |
| Protection Level | IP65 |
EVS QJR8-700 - Applications
Assembly Operations
Perform precise assembly tasks in electronics, automotive, and other industries.
Material Handling
Efficiently move materials within production facilities.
Sorting
Organize products or components based on predefined criteria.
Loading and Unloading
Streamline the transfer of products to and from machinery or conveyors.
Research & Development
Ideal for testing and development in industrial settings.
Integration & Support
Software Compatibility
Supports integration with various industrial automation systems.
Control Interfaces
Offers intuitive control via a user-friendly interface.
Safety Features
Incorporates advanced safety mechanisms to ensure safe operation alongside human workers.
Global Support
Access to EVS Robotics' worldwide customer support and service network.
