Unitree B2
High-Performance Quadruped Robot
for Advanced Applications
Unitree B2 Overview
The Unitree B2 is a next-generation industrial-grade quadruped robot engineered for high performance, agility, and versatility. Weighing approximately 60 kg and featuring a maximum joint torque of 360 N·m, it boasts a top speed exceeding 6 m/s. Equipped with advanced sensors and computing capabilities, the unitree B2 robot dog is designed for complex tasks in various settings, including industrial inspections, emergency rescues, and research applications.
Features & Benefits

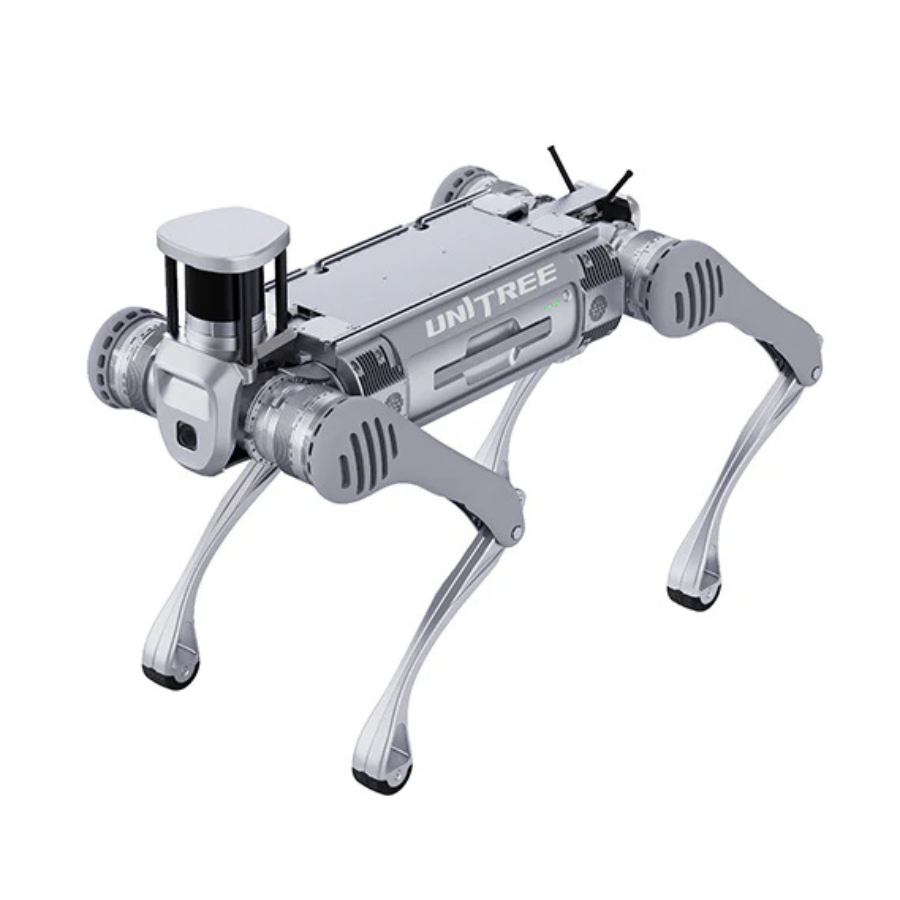

Exceptional Speed
Achieves running speeds over 6 m/s, making the B2 Robot one of the fastest quadruped robots in its class.
High Payload Capacity
Supports a standing load of up to 120 kg and a continuous walking load exceeding 40 kg.

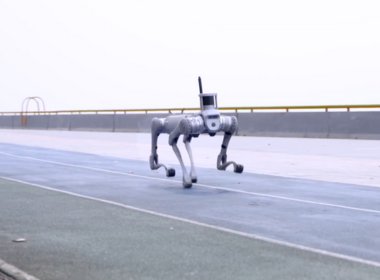

Advanced Mobility
B2 is capable of climbing 40 cm stairs, handling slopes over 45°, and jumping distances greater than 1.6 m.
Long Endurance
Offers over 5 hours of operation without load and over 4 hours with a 20 kg load, covering distances up to 20 km.

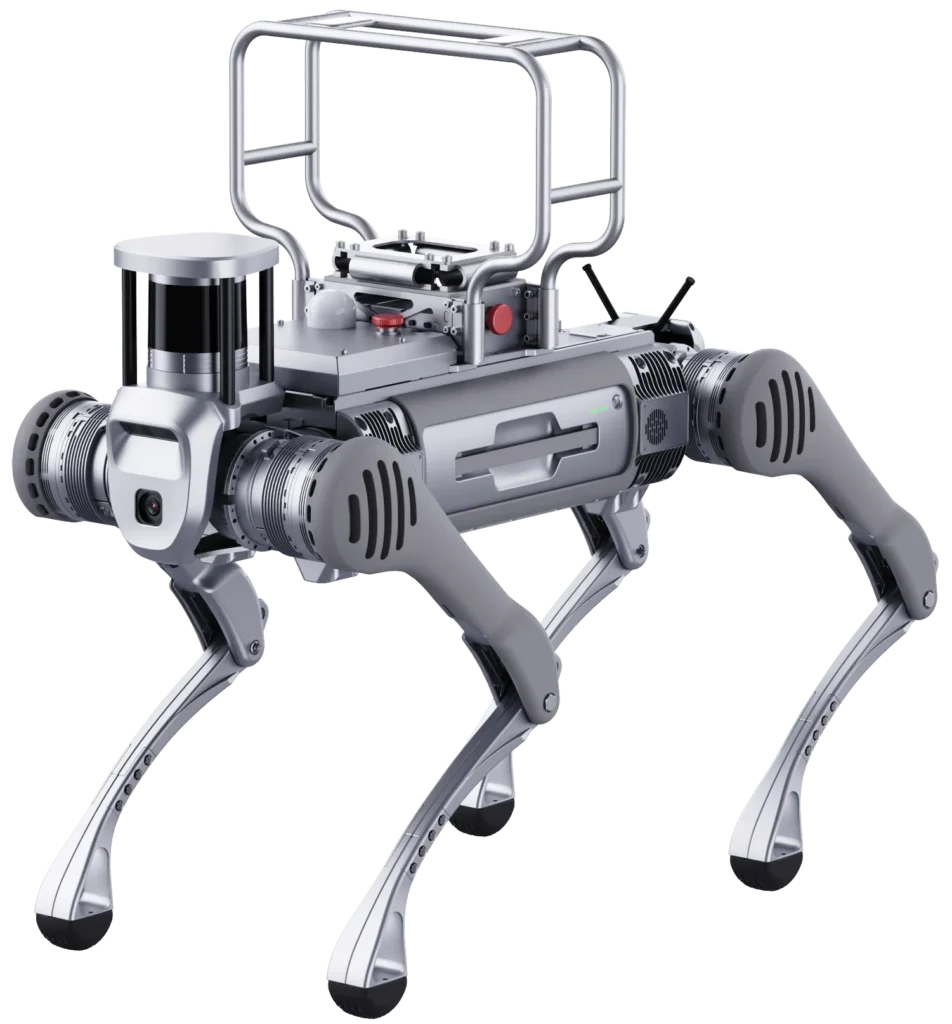

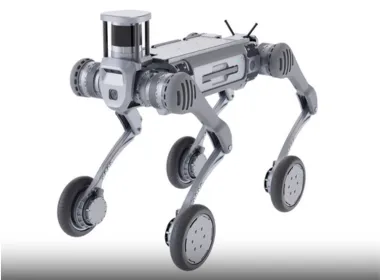

Modular Design
Offers an optional wheeled-leg configuration, making the unitree B2 Robot adaptable across various terrains

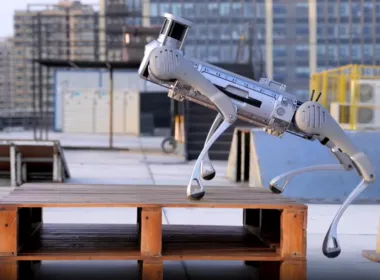

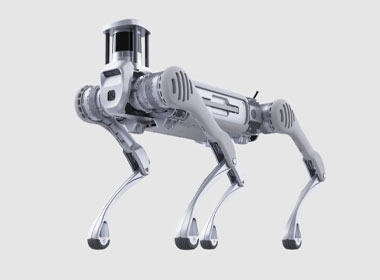

Intelligent Control Systems
Equipped with Intel Core i5/i7 processors and optional NVIDIA Jetson Orin for advanced computing and AI capabilities.
Robust Construction
B2 is built with IP67-rated protection, ensuring durability in harsh environments.

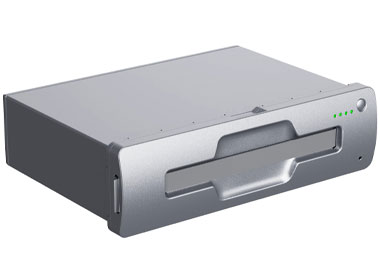

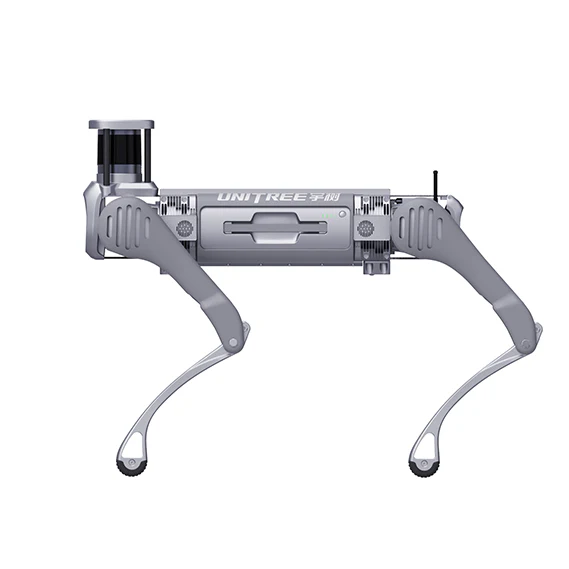

Quick Battery Replacement
Features a 45 Ah (2250 Wh) battery with quick-swap capability and support for autonomous charging solutions.
| Dimensions (Standing) | 1098 mm × 450 mm × 645 mm |
|---|---|
| Dimensions (Lying Prone) | 880 mm × 460 mm × 330 mm |
| Weight | Approximately 60 kg (with battery) |
| Payload Capacity (Standing) | Up to 120 kg |
| Payload Capacity (Walking) | 40 kg |
| Maximum Speed | 6 m/s |
| Climbing Angle | >45° |
| Obstacle Crossing | Up to 40 cm |
| Jumping Distance | 1.6 m |
| Battery Capacity | 45 Ah (2250 Wh), 58V |
| Operating Time | 5 hours (no load), >4 hours (20 kg load) |
| Range | 20 km (no load), >15 km (20 kg load) |
| Computing Power | Intel Core i5/i7; optional NVIDIA Jetson Orin |
| Maximum Joint Torque | 360 N·m |
| Sensors | 3D LiDAR, Depth Cameras, Optical Cameras |
| Connectivity | 1000M Ethernet, USB 3.0, Wi-Fi 6, Bluetooth |
| Ingress Protection | IP67 |
| Operating Temperature | -20°C to 55°C |
| Warranty Period | 12 months |
Unitree B2 Applications
Industrial Inspection
Navigate and assess complex industrial environments, identifying anomalies and ensuring operational efficiency.
Fire Rescue Operations
Operate in hazardous conditions to assist in search and rescue missions, delivering supplies, and providing real-time data to first responders.
Education & Research
Serve as a platform for advanced robotics research, AI development, and educational purposes in academic institutions.
Security Patrols
Monitor and patrol facilities, enhancing security measures.
Logistics Support
Assist in transporting goods across challenging terrains within warehouses or distribution centers.
Integration & Support
Sensor Integration
Compatible with various sensors for enhanced functionality and adaptability.
Software Compatibility
Supports open-source development platforms and standard robotics frameworks, allowing the B2 Robot to be customized easily
Expansion Ports
B2 equipped with interfaces for easy integration of additional modules and peripherals.
Documentation & Resources
Comprehensive manuals, SDKs, and support materials available for developers and engineers.
