PUDU CC1
Intelligent Commercial Cleaning Robot / Four-in-One Autonomous Floor Care System
PUDU CC1 Overview
The PUDU CC1 is a state-of-the-art commercial cleaning robot designed to automate and elevate floor maintenance across large indoor environments. It combines four essential cleaning functions — sweeping, scrubbing, vacuuming, and mopping — into one highly capable, autonomous machine. With built-in sensors and smart navigation, CC1 delivers consistent, high-quality cleaning with minimal human oversight.
Ideal for use in shopping centres, airports, hospitals, hotels, office complexes, education institutions, and other high-traffic public venues, CC1 helps reduce labour costs, maintain hygiene standards, and streamline cleaning operations. Its robust SLAM navigation (visual + laser) allows it to handle complex floorplans and busy environments efficiently.
Features & Benefits

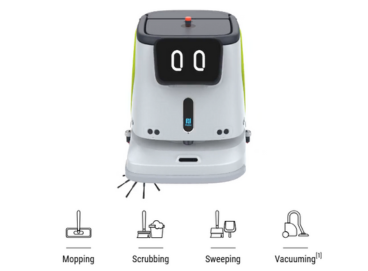

4-in-1 Multi-Function Cleaning
Sweeping, scrubbing, vacuuming, and dust mopping – pudu cc1 handles all major floor types, eliminating the need for separate machines or manual switching.

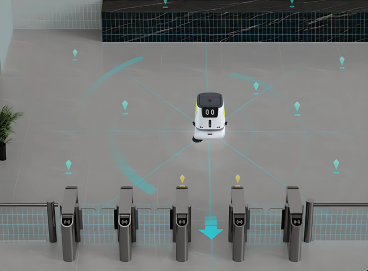

Intelligent SLAM Navigation System
15 L clean water tank + 15 L wastewater tank in pudu cc1, with an optional workstation that supports automatic filling/draining and detergent addition, reducing manual interventions.
Large Capacity Tanks & Automated Water Management
15 L clean water tank + 15 L wastewater tank; optional workstation supports automatic filling/draining and detergent addition. Reduces manual interventions.
Auto-Charging & Breakpoint Resume
When battery runs low, pudu cc1 returns to its docking station to recharge and remembers its last cleaning task position, resuming where it left off after charging.

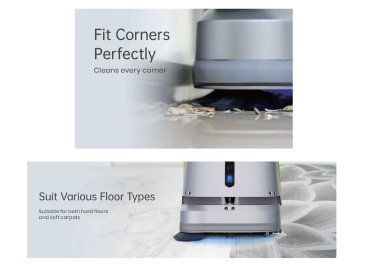

Adaptable to Different Floor Types & Edge Cleaning
PUDU CC1 works on hard floors (tile, stone, resin, etc.) and low-pile carpets, with side brushes helping clean edges, corners, and baseboards for thorough coverage.

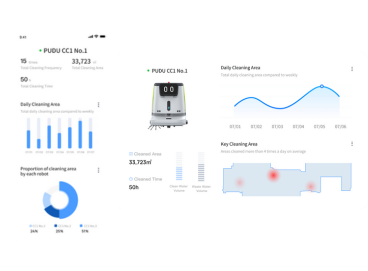

Digital Monitoring & Reporting
Via app and/or dashboard, pudu cc1 allows users to view real-time performance data such as cleaned area, operating time, and task status, while supporting scheduling and logging to ensure cleaning quality and accountability.
Modular Design for Maintenance & Flexibility
Components/modules are designed for quick disassembly, tool-less replacement. Allows upgrades or part swaps easily.
| Dimensions (L × W × H) | ~ 663 × 568 × 682 mm |
|---|---|
| Weight | ~ 75 kg |
| Cleaning Modes | Sweeping · Scrubbing · Vacuuming · Dust-Mopping |
| Sweeping Width | ~ 500 mm |
| Scrubbing Width | ~ 400 mm |
| Clean / Waste Water Tank Capacity | 15 L / 15 L |
| Run-Time | Up to ~ 8 hours (sweeping / vacuum / mopping modes) |
| Charging Time | < 3 hours |
| Noise Level | < 70 dB |
| Cruise / Max Speed | Up to ~ 1.2 m/s |
| Operating Interface | 10.1-inch touchscreen / local interaction display |
| Navigation / Positioning | Visual SLAM + Laser SLAM; multi-sensor fusion for obstacle detection |
PUDU CC1 Applications
Shopping Malls & Retail Spaces
Maintain clean floors in corridors, rest areas, food courts with minimal disruption — keeping both appearance and hygiene high.
Hospitals, Clinics & Healthcare Facilities
Reduce cross-contamination risk by automating cleaning, ensure consistent cleanliness in patient rooms, corridors, waiting areas.
Hotels, Convention Centres & Hospitality Venues
Use during off-peak to deep-clean banquet halls, lobbies, and guest floors; allow staff to focus on high-touch services.
Education Institutions & Schools
Clean classrooms, corridors, auditoriums efficiently, with digital reporting to satisfy safety/hygiene compliance.
Offices & Corporate Campuses
Keeps open plan areas, hallways, cafeteria floors clean without staff disruption; scheduled cleaning outside business hours.
Transportation Hubs & Public Venues
Airports, metro stations, train stations — large floor areas with heavy foot traffic benefit from 4-in-1 coverage and automated scheduling.
Integration & Support
Software & Management Platform
App / cloud-based scheduling, mapping tools, real-time status monitoring, performance reporting.

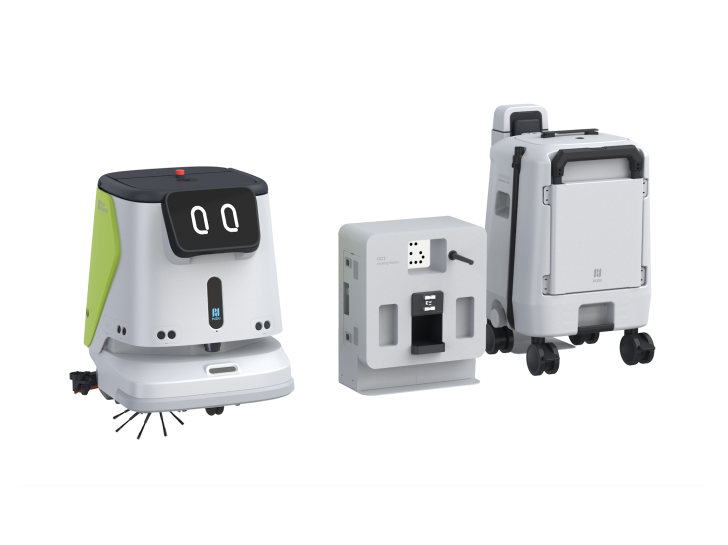

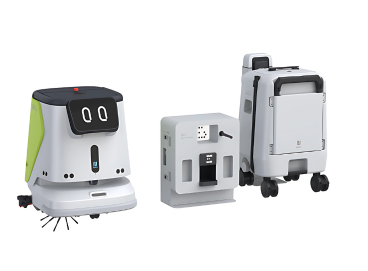

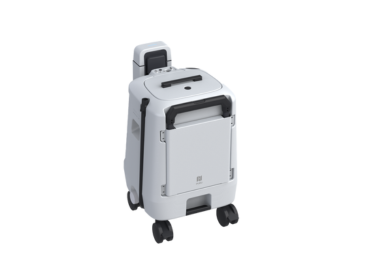

Docking / Workstation Integration
Optional workstation handles auto refill and drainage, charging, cleaning solution dispensing — reducing manual tasks.
Sensors & Safety Systems
Multi-fusion sensors (LiDAR, RGBD, ultrasonic, bumpers, cliff sensors) ensure safe navigation, obstacle avoidance, edge / drop-off detection.
Maintenance & Modular Parts
Components designed for easy access; spare parts availability; scheduled servicing by EdNex Automation; staff training included.
