FAIRINO FR30
High-Payload Collaborative Robot for Demanding Applications
FAIRINO FR30 - Overview
The FAIRINO FR30 is a new generation 6-axis collaborative robot designed based on human-robot collaboration technology. With a substantial payload capacity and extended reach, it is ideal for applications such as palletizing, handling, and tasks requiring high torque. The FR30 integrates advanced features to ensure safety, flexibility, and efficiency in various industrial environments.
Features & Benefits

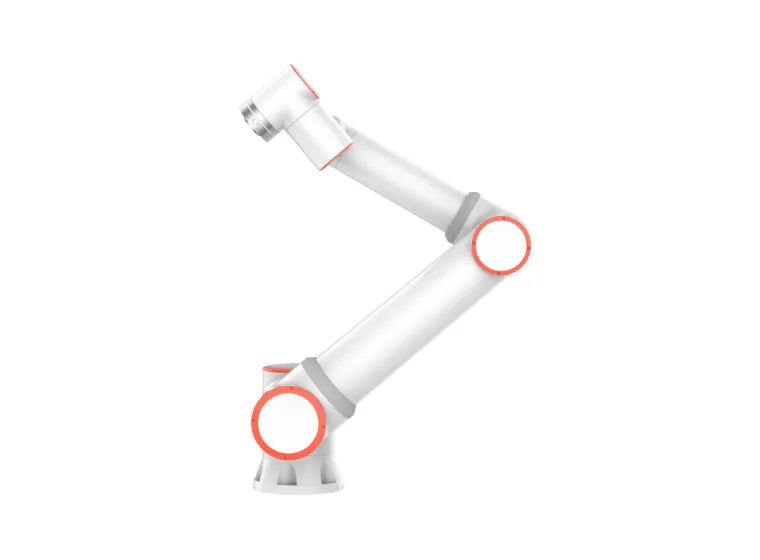

High Payload Capacity
The FR30 handles payloads up to 30 kg, making it suitable for heavy-duty industrial applications.

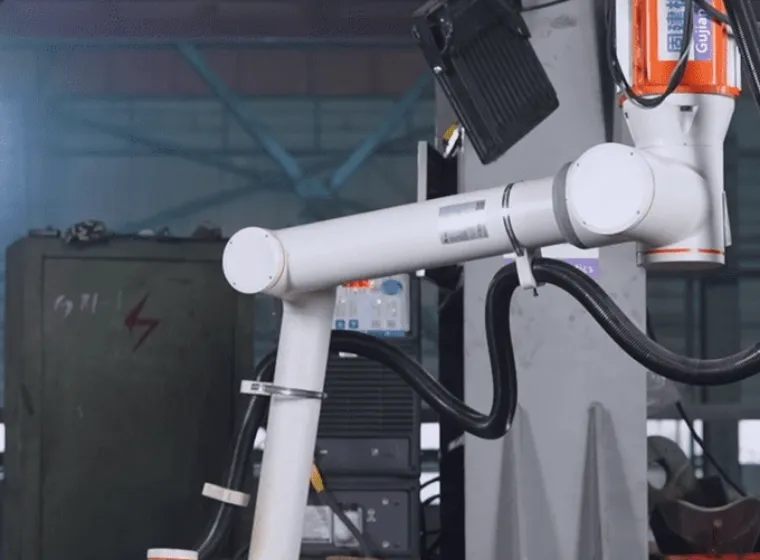

Extended Reach
With a maximum reach of 1403 mm, the FR30 enables access to larger workspaces with precision and flexibility.

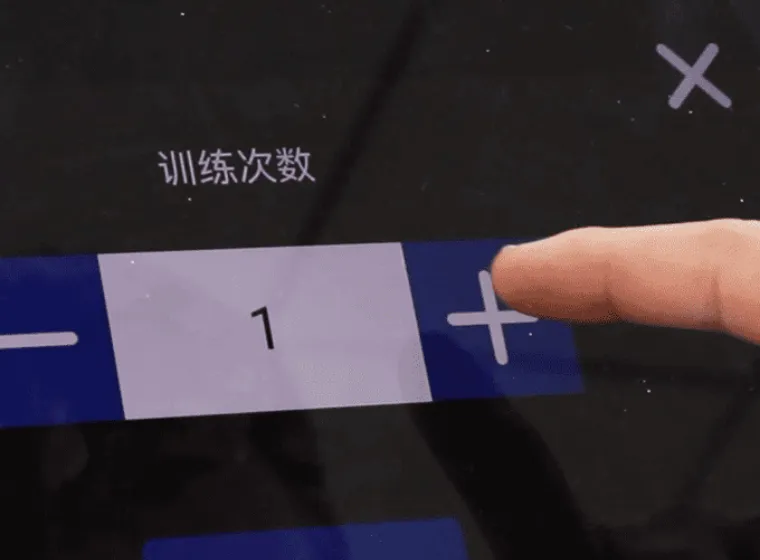

Precision
The FR30 achieves a repeatability of ±0.1 mm, ensuring high accuracy and consistency in operations.
Flexible Deployment
Designed for versatility, the FR30 supports installation in any orientation, providing adaptability to various production lines.

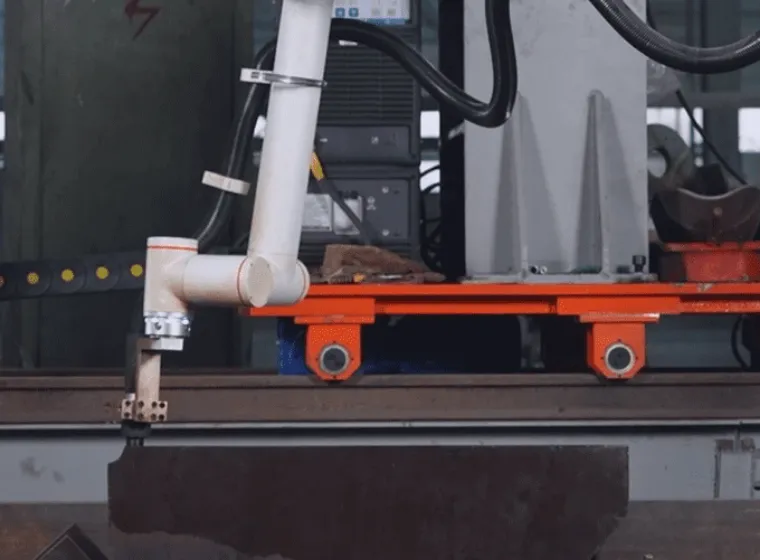

User-Friendly Interface
Equipped with a 10.1-inch teach pendant or accessible via a mobile terminal Web APP, the FR30 offers intuitive and efficient control.

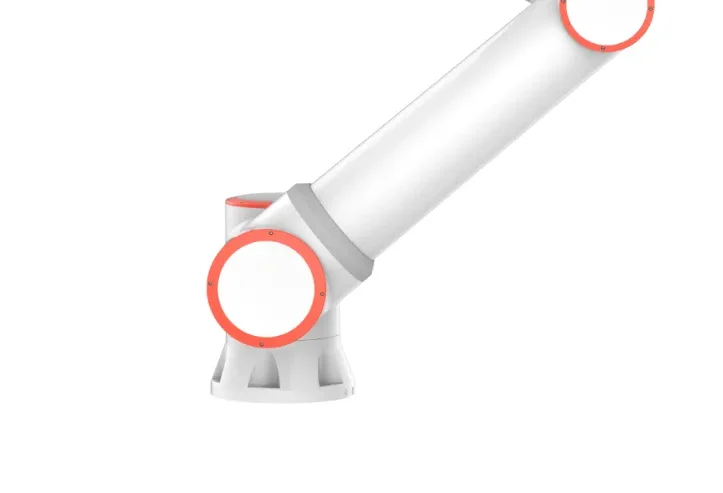

Advanced Safety Features
The FR30 incorporates full closed-loop joint torque feedback and a modular design to ensure safe human-machine collaboration.

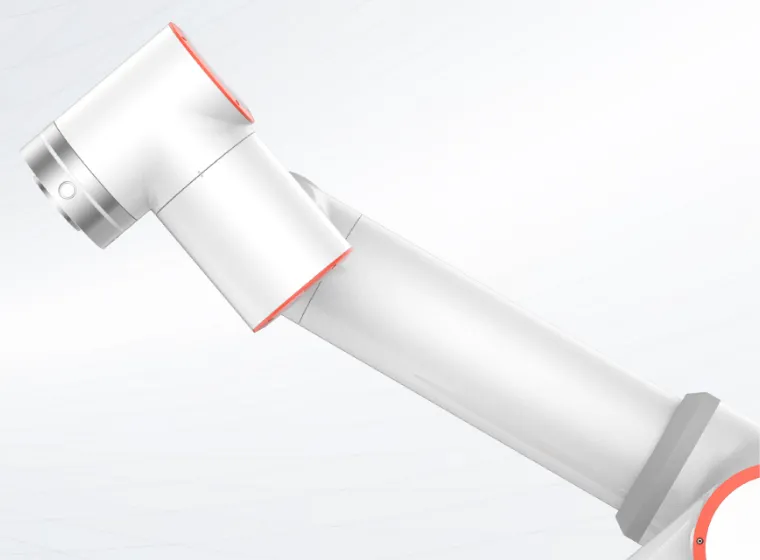

Robust Construction
Built with durable aluminum and steel materials, the FR30 provides outstanding stability and longevity.

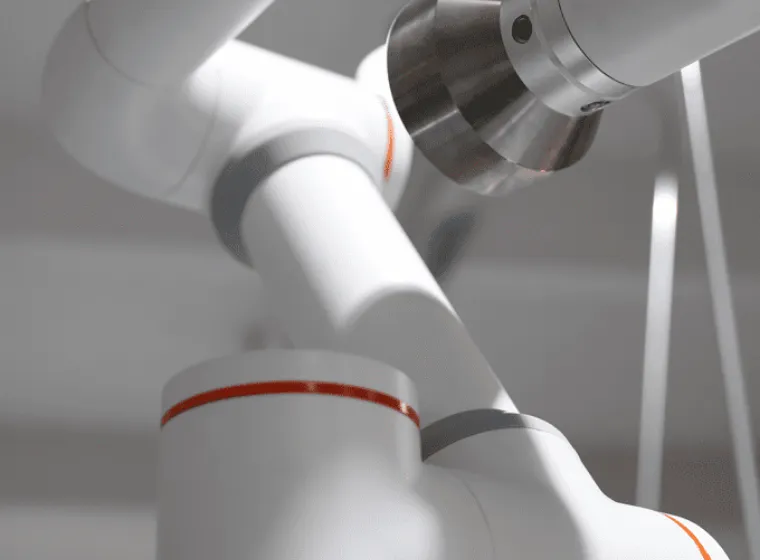

Environmental Resistance
With an IP54 rating (IP65 optional), the FR30 is suitable for a wide range of industrial environments and conditions.
| Degrees of Freedom (DoF) | 6 rotating joints |
| Payload Capacity | 30 kg |
| Maximum Reach | 1403 mm |
| Repeatability | ±0.1 mm |
| Typical TCP Speed | 2 m/s |
| Mounting Orientation | Any orientation |
| HMI | 10.1-inch teach pendant or mobile terminal Web APP |
| IP Classification | IP54 (IP65 Optional) |
| Noise Level | <70 dB |
| Weight | ≈85 kg (without wire) |
| Operating Temperature | 0–45°C |
| Operating Humidity | 90% RH (non-condensing) |
| Materials | Aluminum, Steel |
| I/O Ports | 2 DI, 2 DO, 1 AI, 1 AO |
| Tool I/O Power Supply | 24V/1.5A |
| Controller Options | DC Controller 5KW / AC Controller 5KW |
| Controller IP Classification | IP54 |
| Controller Operating Temp. | 0–45°C |
| Controller Operating Humidity | 90% RH (non-condensing) |
| Controller I/O Ports | 16 DI, 16 DO, 2 AI, 2 AO, 2 High-speed pulse input |
| Communication Interfaces | I/O, TCP/IP, Modbus_TCP/RTU |
| Optional Communication | CC-Link, Profinet, Ethernet/IP, EtherCAT |
| Software Development Kit | C#, C++, Python, ROS, ROS2 |
FAIRINO FR30 - Applications
Palletizing
Automate stacking and organizing products for shipping or storage.
Material Handling
Efficiently move heavy materials within production facilities.
High-Torque Tasks
Perform operations requiring substantial force with precision.
Research & Development
Ideal for testing and development in industrial settings.
Human-Robot Collaboration
Designed for safe operation alongside human workers, enhancing collaborative workflows.
Integration & Support
Software Compatibility
Supports programming through C#, C++, Python, ROS, and ROS2, facilitating seamless integration into existing systems.
Control Interfaces
Offers intuitive control via joystick, computer, or custom applications.
Safety Features
Incorporates full closed-loop joint torque feedback and modular design to ensure safe human-machine collaboration.
Global Support
Access to FAIRINO's worldwide customer support and service network.
