PUDU MT1 Vac
AI-Powered Robotic Sweeper & Vacuum / Solution
High-Efficiency Dry Floor Cleaning
PUDU MT1 Vac Overview
The PUDU MT1 Vac is a high-performance, AI-driven robotic sweeper & vacuum built for large commercial and industrial indoor environments. It combines sweeping, vacuuming, and dust-mopping into a single autonomous unit, enabling spotless floors with minimal human supervision. With advanced navigation, wide coverage, and powerful suction, it is ideal for high-traffic areas like shopping centres, hospitals, hotels, airports, and stadiums. Designed to operate continuously with fast charging, modular and tool-free maintenance, and adaptive cleaning modes, MT1 Vac brings both efficiency and smart performance. It handles different floor types (hard floors, carpets) and dynamically adjusts to its environment for consistent cleaning coverage.
Features & Benefits

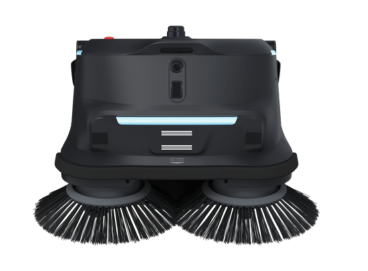

Dual-Fan Suction System
Equipped with two independent air ducts, boosting suction efficiency by up to 200%, enabling the PUDU MT1 Vac to perform deep cleaning of embedded dirt and tougher debris.
Multi-Mode Cleaning
Offers sweeping, vacuuming, and dust-mopping, with the MT1 Vac automatically switching between modes depending on surface (e.g. carpet vs hard floor) for optimal performance and protection.

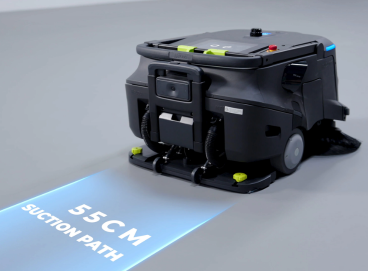

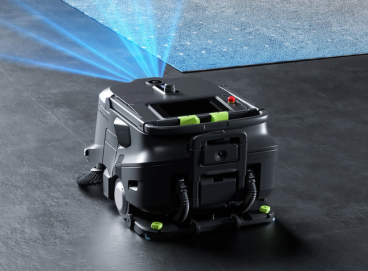

Wide Cleaning Coverage & Path Efficiency
55 cm wide suction path and up to 70 cm sweeping with side brushes allow the MT1 Vac to cover larger areas faster—cutting down cleaning times significantly.
Adaptive Navigation & Smart Spot Cleaning
Uses LiDAR SLAM + VSLAM + optional marker-based localization, and the MT1 Vac includes vision-based detection to identify trash or debris and intelligently handle spot cleaning as part of routine cycles.
Extended Run-Time & Fast Charging
Runtime between ~3 to 6.5 hours depending on mode; standard sweep/vacuum mode gives about 4 hours, and the PUDU MT1 Vac supports fast charging (less than ~3.5 hours) for nearly continuous operation.

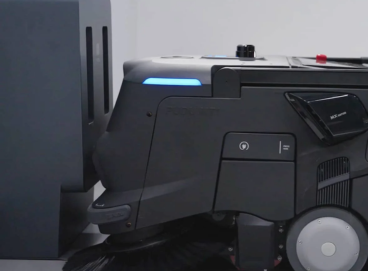

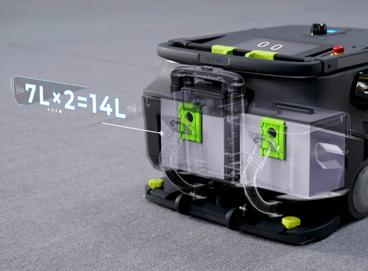

Large Waste & Dust Capacity
6 L trash bin + 14 L dust bags (split across two 7 L bags) enable the MT1 Vac to reduce frequency of emptying during long cleaning sessions.

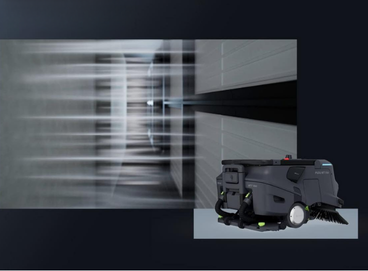

HEPA-Grade Filtration
Captures over 98% of particles ≥ 0.3 µm, and the PUDU MT1 Vac offers an optional upgrade to HEPA-13 (≈ 99.97%) for environments needing higher air quality—helping maintain cleaner air and reduce allergens or dust in sensitive settings.

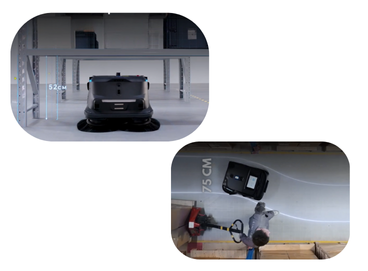

Low-clearance & Narrow Path Capability
Minimum height ≈ 52 cm lets the MT1 Vac clean under racks and low furniture, with path clearance as low as ~75 cm width for navigating tighter aisles or lanes.

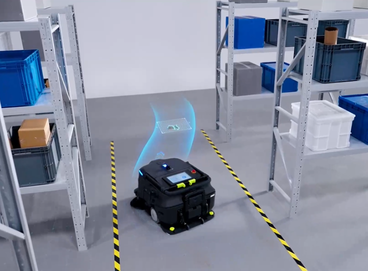

Edge-to-Edge and Dynamic Obstacle Avoidance
High-precision sensors + algorithms ensure the MT1 Vac cleans close to walls, pillars, and around obstacles with smart rerouting.

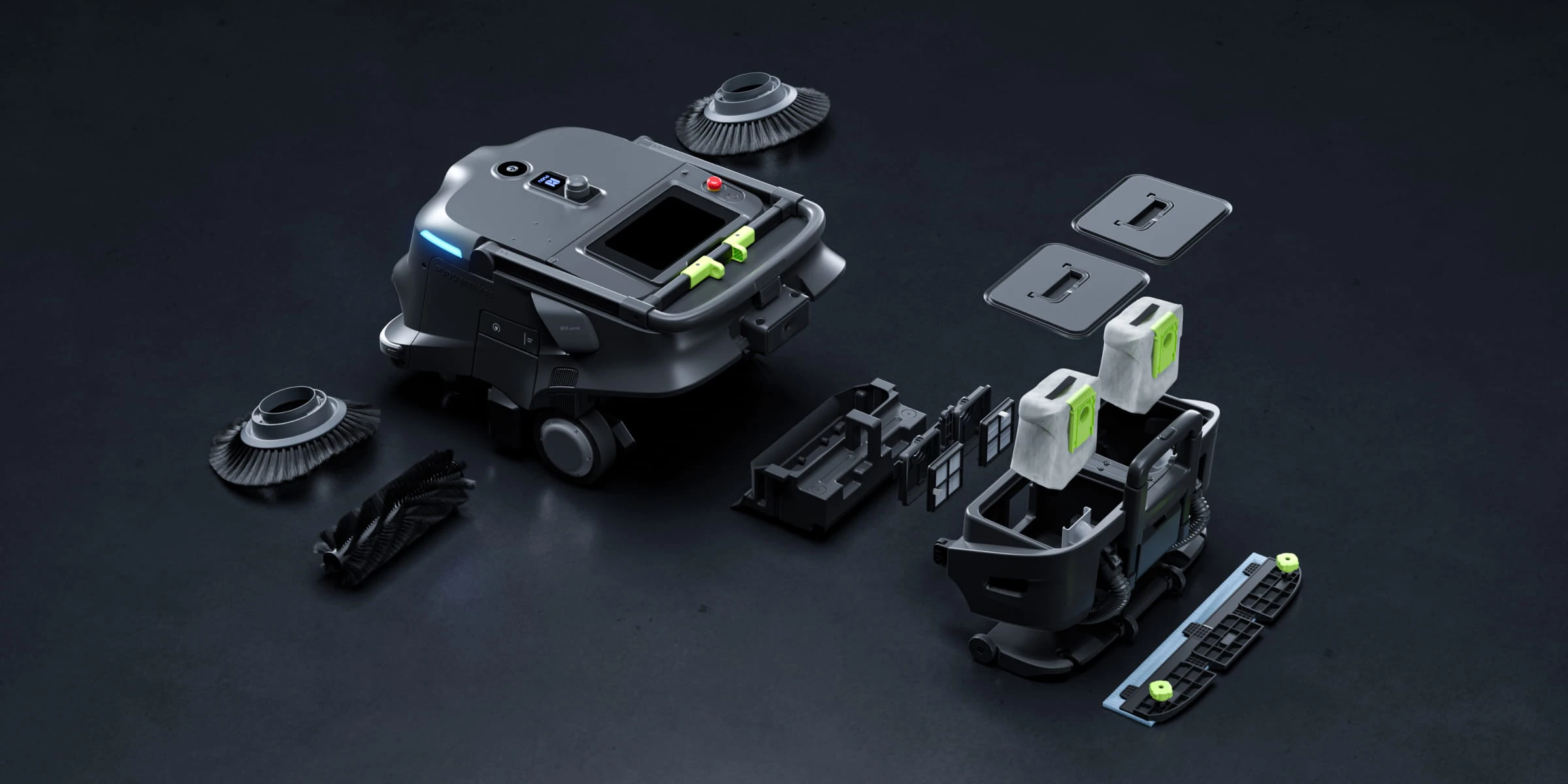

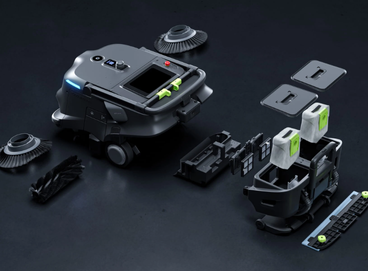

Toolless Maintenance & Modular Design
Components like bins, brushes, side brushes, and dust mop modules can be removed or replaced without tools, allowing the MT1 Vac to minimize downtime during servicing.

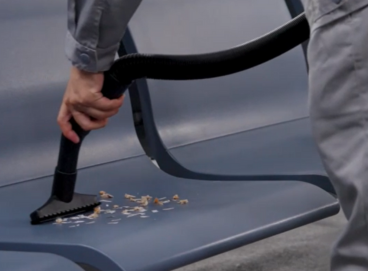

Hand-Vacuum Extension
For those spots regular robot movement can’t reach — edges, upholstery, glass surfaces — the MT1 Vac provides a hand-vacuum extension for extra flexibility.
| Dimensions (L × W × H) | 840 × 600 × 490 mm (≈ 33 × 23.6 × 19.3 in) |
|---|---|
| Weight | 75 kg (≈ 165 lbs) |
| Cleaning Capabilities | Sweeping, Vacuuming, Dust-Mopping |
| Run-Time | ~ 3-6.5 h (≈ 4 h in standard sweep+vacuum mode) |
| Charging Time | < 3.5 hours |
| Cruise Speed | 0.2 to 1.2 m/s (adjustable) |
| Vacuuming Width | 55 cm (≈ 21.7 in) |
| Sweeping Width (with side brush) | ~ 70 cm (≈ 27.6 in) |
| Path Clearance (Width) | Minimum ~ 75 cm |
| Path Clearance (Height) | Minimum ~ 52 cm |
| Trash Bin Capacity | 6 L |
| Dust Bag Capacity | 14 L (7 L × 2) |
| Air Filtration Level | H11 (standard), HEPA-13 optional |
PUDU MT1 Vac Applications
Shopping Centres & Malls
Clean large foyers, escalator landings, public walkways overnight; maintain cleanliness during business hours in less obtrusive ways.
Hospitals, Clinics & Healthcare Facilities
Maintain hygienic floor surfaces with HEPA-filtration and dry-cleaning, reducing cross-infection risk and ensuring cleaner air.
Hotels, Resorts, & Banquets
Use in lobbies, banquet areas, corridors — handle large floor areas efficiently, reduce labour, enhance guest perception.
Airports, Train Stations & Transportation Hubs
Constant traffic, mixed floor surfaces, large open areas — MT1 Vac can handle the demands of high throughput cleaning.
Retail & Supermarkets
Aisles, entrances, check-out zones with mixed flooring; helps maintain appearance, minimize slip hazards, reduce staff burden.
Corporate Campuses & Offices
High footfall areas, lobbies, hallways, large floor-spaces where continuous cleaning improves cleanliness and perceived quality.
Integration & Support

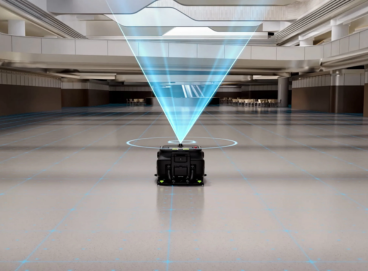

Navigation & Sensors
Uses combined LiDAR SLAM + VSLAM + marker localisation to map large areas, adapt to moving obstacles, and ensure safe navigation. Edge detection, wall following, obstacle avoidance included.
Software & Management Platform
Compatible with PUDU Link / management dashboards; remote monitoring; scheduling; performance reporting; adjusting cleaning modes based on floor type or site needs.
Module & Accessory Options
Hand-vacuum extension, detachable dust mop modules; optional HEPA-13 filter; side brushes; large-capacity dust bags.
Maintenance & After-Sales Services
Tool-free components ease routine servicing; EdNex Automation will provide local support for spare parts, staff training, preventive maintenance, reliability assurance.
