BellaBot Overview
BellaBot is an elegant, high-interaction service robot designed to transform customer engagement and operational efficiency in environments such as restaurants, hotels, retail outlets, and hospitality venues. It blends a cute biomimetic appearance with robust technology to deliver food, greet guests, and interact via multiple sensory modalities. Equipped with both Laser SLAM and Visual SLAM navigation, BellaBot can safely navigate in diverse indoor layouts. Its advanced obstacle detection, multimodal interaction, and expressive design make it not only functional but delightful for users. It handles dynamic environments, overhanging obstacles, and low-lying obstructions with ease.
Features & Benefits

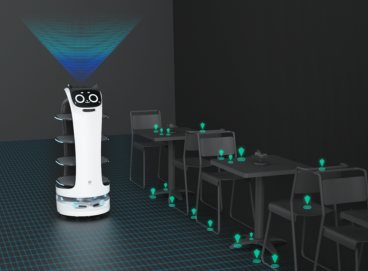

Dual SLAM Navigation (Laser + Visual)
Adaptable positioning and mapping for varied spaces — BellaBot works with and without markers — for reliable movement and routing in complex floorplans.

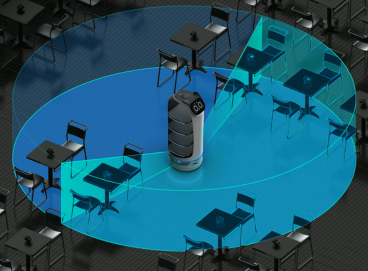

3D Omnidirectional Obstacle Avoidance
Using 3 RGBD cameras + LiDAR, BellaBot can detect obstacles at any angle (front overhangs, low obstacles, etc.), stopping and re-routing as needed; detection frequency up to ~ 5,400 times/minute.
Multimodal Human-Robot Interaction
Light interactions, touch feedback, expressive displays (“smart expressions”), and other gesture or ambient cues — BellaBot enhances user engagement and clarity of robot status.

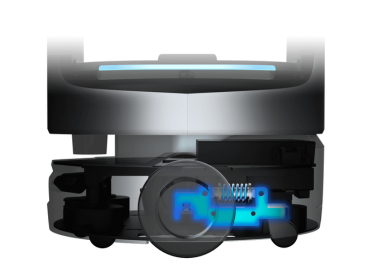

Stable Ride with Adaptive Suspension
Automotive-grade suspension system in BellaBot adjusts damping based on floor conditions to ensure smoother, stable travel — even when loaded.

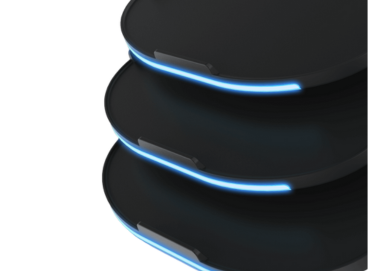

High Load Capacity & Tray Design
Four intelligent trays in BellaBot, each capable of carrying up to ~ 10 kg, support delivery of meals, items, or goods; trays are modular and optimized for easy disassembly and tray-sensor detection.

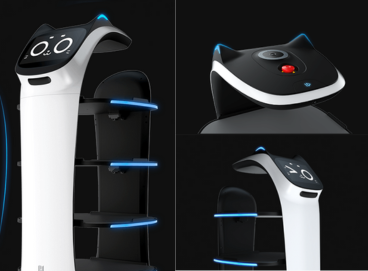

Expressive Design & Branding Friendliness
Biomimetic body styling in BellaBot — with “cat-ear” or curved screen inclines, smart facial expressions, and lighting effects — makes it engaging and approachable; great for branding, guest experience, and visibility.

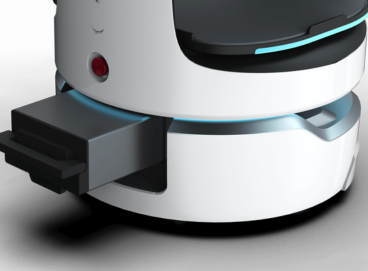

Battery & Operation Flexibility
Replaceable battery setup in BellaBot, with long working times (approx. 10-12 hours under certain use profiles), quick charging times, and modes for continuous operations.
| Machine Dimensions (W × D × H) | 565 × 537 × 1,290 mm |
|---|---|
| Machine Material | ABS + aviation-grade aluminium alloy |
| Net Weight | ~ 55-59 kg |
| Number of Trays | 4 trays |
| Max Load per Tray | ~ 10 kg/tray |
| Charging Time | ~ 4.5 hours |
| Run-Time / Battery Life | ~ 10-12 hours (depending on usage) |
| Cruise Speed | ~ 0.5-1.2 m/s (adjustable) |
| Minimum Clearance / Aisle Width | ~ 70 cm (for operation, in certain use cases) |
| Obstacle Detection Frequency | ~ 5,400 times/minute |
BellaBot Applications
Restaurants & Theme Dining
Deliver meals, clear tables, serve guests, and create memorable dining atmospheres with emotive interactions.
Hotels, Banquet Halls & Hospitality Venues
Use BellaBot for room service, guidance, promotional display, and guest interaction in lobbies or event spaces.
Retail & Shopping Centres
Acts as both delivery helper (e.g. carrying items), and as an interactive brand ambassador / promotional display.
Senior Living & Health Care Facilities
Assist with item delivery, provide companionship & interaction with emotive design and reduced risk of collision thanks to strong sensors.
Corporate & Office Spaces
Internal mail or snack delivery, reception assistance, wayfinding / visitor greeting.
Entertainment & Leisure
Use in venues like theme parks, exhibitions, or showrooms to engage visitors, deliver small items, or drive promotions in cruise mode.
Integration & Support
Navigation & Sensor Systems
Laser SLAM + Visual SLAM; RGBD cameras, obstacle detection modules; supports overhanging & low obstacles; modular chassis design.
Human-Robot Interface
Touch feedback, smart expressions, lighting cues, sound / voice interactions to improve clarity and interaction for users & staff.
Power & Battery Management
Replaceable battery options; docking / charging systems; planning for continuous or high-usage operations.
Maintenance & Accessories
Modular trays; quick-disassembly for parts; sensor modules; spare parts availability; training & servicing. EdNex Automation can support deployment, calibration, integrating with venue requirements.
