QJR6-2000H
Precision and Efficiency for Industrial Welding Applications
Enhance your welding processes with advanced automation solutions
Overview
EVS offers state-of-the-art 6-axis welding robots, including the QJR6-1400H and QJR6-2000H models, designed to meet the diverse needs of modern industries. These robots provide precise and consistent performance, making them ideal for various welding applications. With advanced control systems and robust construction, EVS welding robots ensure high-quality welds, increased productivity, and reduced operational costs.
Features & Benefits

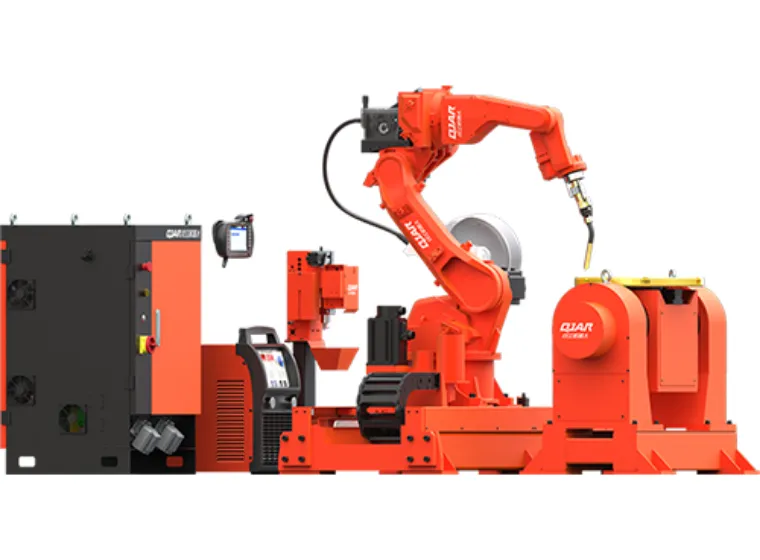

High Precision
Achieves exceptional repeatability, ensuring consistent weld quality.

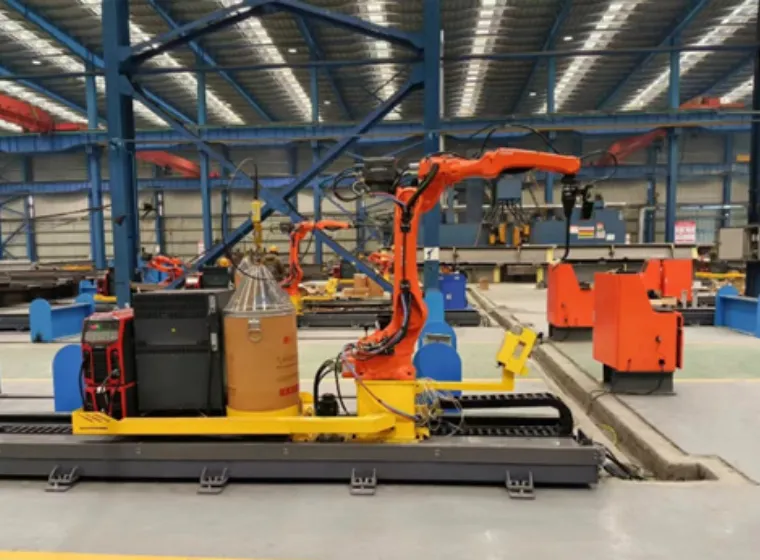

Extended Reach
Models like the QJR6-2000H offer a reach of up to 2014mm, suitable for large workpieces.
Advanced Control Systems
Equipped with sophisticated sensors and controllers for accurate welding operations.

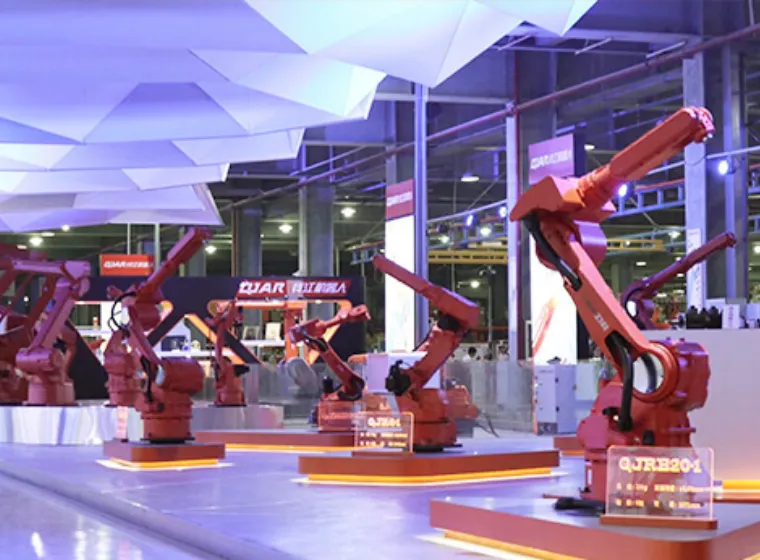

Flexible Deployment
Supports various mounting orientations, adapting to different production line configurations.

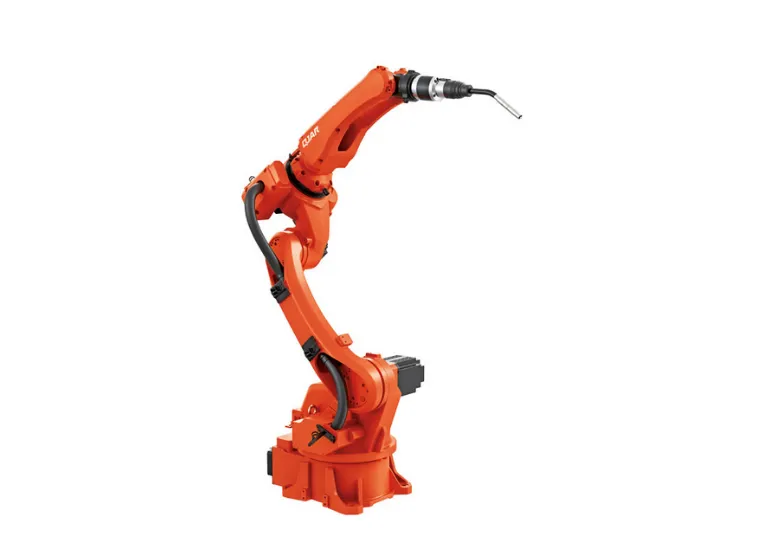

Robust Construction
Built with durable materials to withstand demanding industrial environments.
Energy Efficiency
Designed to optimize power consumption without compromising performance.
| Specification | QJR6-1400H | QJR6-2000H |
|---|---|---|
| Degrees of Freedom (DoF) | 6 rotating joints | 6 rotating joints |
| Payload Capacity | 6 kg | 6 kg |
| Maximum Reach | 1456 mm | 2014 mm |
| Repeatability | ±0.08 mm | ±0.08 mm |
| Motion Range | J1: ±175°, J2: +159°/-95°, J3: +95°/-125°, J4: ±183°, J5: +129°/-126°, J6: ±360° | J1: ±175°, J2: +159°/-95°, J3: +95°/-125°, J4: ±183°, J5: +129°/-126°, J6: ±360° |
| Maximum Joint Speeds | J1–J3: 189°/s, J4: 378°/s, J5: 320°/s, J6: 687°/s | J1–J3: 189°/s, J4: 378°/s, J5: 320°/s, J6: 687°/s |
| Allowable Torque | J4: 8.81 N·m, J5: 8.81 N·m, J6: 3.14 N·m | J4: 8.81 N·m, J5: 8.81 N·m, J6: 3.14 N·m |
| Inertia Moment | J4: 0.2 kg·m², J5: 0.2 kg·m², J6: 0.03 kg·m² | J4: 0.2 kg·m², J5: 0.2 kg·m², J6: 0.03 kg·m² |
| Robot Body Weight | 230 kg | 230 kg |
| Power Capacity | 3.4 kVA | 3.4 kVA |
| Mounting Orientation | Ground-mounted or ceiling-mounted | Ground-mounted or ceiling-mounted |
| Applications | Welding | Welding |
QJR6-2000H - Applications
Assembly Operations
Perform precise welding tasks on vehicle components.
Construction
Weld structural elements with high accuracy and consistency.
Manufacturing
Automate welding processes in various manufacturing sectors to enhance productivity.
Metal Fabrication
Execute complex welding operations on diverse metal workpieces.
Integration & Support
Software Compatibility
Supports integration with various industrial automation systems.
Control Interfaces
Offers intuitive control via user-friendly interfaces.
Safety Features
Incorporates advanced safety mechanisms to ensure safe operation alongside human workers.
Global Support
Access to EVS Robotics' worldwide customer support and service network.
