AgileX RANGER
Heavy-Duty Omnidirectional UGV for Industrial Applications
AgileX RANGER Overview
The AgileX RANGER is a robust, omnidirectional unmanned ground vehicle (UGV) designed for demanding industrial and research applications. With a substantial payload capacity of 150 kg and a modular design, it offers exceptional adaptability for various tasks. Its four-wheel independent suspension ensures smooth navigation across complex terrains, while the hot-swappable battery system minimizes downtime, enhancing operational efficiency.
Features & Benefits
High Payload Capacity
The Ranger supports up to 150 kg, accommodating heavy equipment and sensors with ease.
Omnidirectional Mobility
Four-wheel drive with independent suspension allows the Ranger to move agilely in all directions.

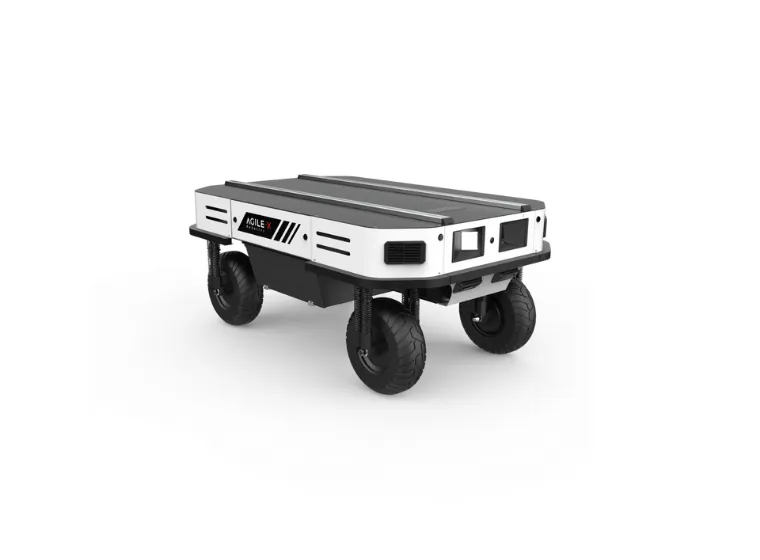

Modular Design
Aluminum T-slot rails on the Ranger facilitate easy integration of additional modules and sensors.
Hot-Swappable Battery System
The Ranger enables continuous operation with minimal downtime, ensuring high productivity.
Advanced Control Systems
It supports CAN bus protocol and offers open-source SDKs for seamless integration and customization, making the Ranger highly adaptable.

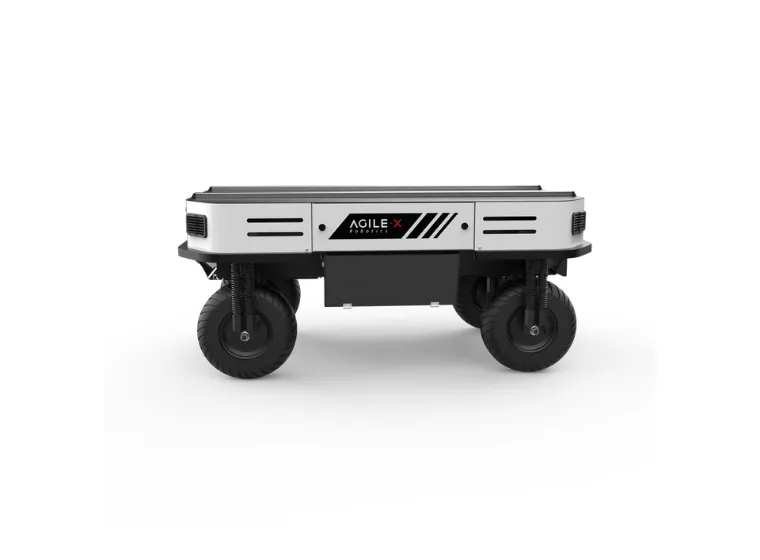

Environmental Resistance
With an IP55 rating, the Ranger is suitable for various industrial conditions and demanding environments.
| Specification | Details |
|---|---|
| Dimensions (L×W×H) | 1228 × 876 × 520 mm |
| Weight | 100 kg |
| Payload Capacity | 150 kg |
| Maximum Speed | 2.6 m/s |
| Runtime | 2–8 hours |
| Battery | 48V 24Ah Lithium (supports up to 4 batteries) |
| Charging Time | Approximately 1 hour per battery |
| Drive System | 4WD with independent suspension |
| Climbing Ability | Up to 10° slope |
| Obstacle Clearance | 100 mm |
| Operating Temperature | -10°C to 45°C |
| Ingress Protection Rating | IP55 |
| Communication Interfaces | CAN bus, Serial interfaces |
| Control Modes | Remote control via RC transmitter, CAN-based commands |
| Programming Support | Open-source SDK, ROS compatibility |
AgileX RANGER - Applications
Industrial Automation
Facilitates tasks like inspection, surveillance, and material transport in manufacturing settings.
Research & Development
The Ranger is ideal for robotics research, algorithm testing, and educational purposes.
Construction
Assists in transporting materials and equipment across construction sites.
Agriculture
Supports tasks such as crop monitoring and data collection in agricultural fields.

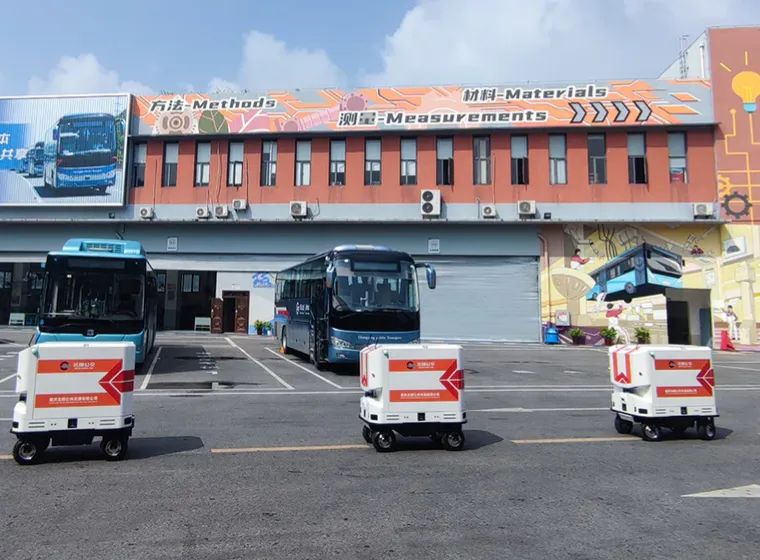

Logistics
Additionally, the Ranger enhances warehouse operations through autonomous material handling and smart logistics.
Integration & Support
Sensor Integration
Compatible with LiDAR, cameras, GPS, and other sensors for enhanced functionality.
Software Compatibility
Supports ROS (Robot Operating System) for advanced programming and control.
Expansion Ports
Equipped with CAN bus and serial interfaces for easy integration of additional modules.
Documentation & Resources
Comprehensive manuals and SDKs available for developers and engineers.
