Unitree Go2-W

Q: What is the Unitree Go2-W Wheeled-Leg Robot?

The Unitree Go2-W is an innovative hybrid quadruped robot that combines both wheels and legs. It is designed for high-speed movement on flat surfaces and agile navigation over uneven terrain.

Q: What are the key specifications of the Unitree Go2-W Robot?

The Go2-W weighs around 18 kg, supports a maximum payload of approximately 12 kg, and can reach speeds up to 2.5 m/s. It features a compact design that allows easy movement in both indoor and outdoor environments.

Q: What types of terrain can the Unitree Go2-W handle?

The Unitree Go2-W works on various surfaces like flat floors, slopes as steep as 35 degrees, and rough ground. It uses its wheeled-leg setup to switch between rolling and walking.

Q: What is the battery life of the Unitree Go2-W?

The battery of the Unitree Go2-W lasts about 1.5 to 3 hours, depending on how it is being used and the surface. It also lets users swap batteries to keep it running longer.

Q: What sensors and smart technologies are included in the Unitree Go2-W?

It comes with wide-angle LiDAR, HD cameras inertial measurement units, and several environmental sensors. These tools help with tasks like mapping in real time spotting obstacles, and navigating.

Q: What are the main applications of the Unitree Go2-W Robot?

The Go2-W works great for robotics education, research industrial inspections, and developing AI. Its design allows it to move indoors on smooth surfaces and handle challenging outdoor landscapes too.

Q: What support does EdNex Automation provide for the Unitree Go2-W?

EdNex Automation offers complete assistance through sales setting up the software, installation, and training operators. They also provide after-sales service to keep things running.

Q: Where can I buy the Unitree Go2-W wheeled robot dog in Dubai, UAE?

Ednex Automation, the official distributor for Unitree in Dubai, sells the Unitree Go2-W wheeled robot dog. They also provide this robot across Saudi Arabia, Kuwait, Qatar, Bahrain, and Oman.

Q: Does Ednex Automation provide installation and support for the Unitree Go2-W in the GCC?

Yes. Ednex Automation handles installation, setup, training, and technical support for the Unitree Go2-W. These services are available throughout the UAE as well as in Saudi Arabia, Kuwait, Qatar, Bahrain, and Oman.

Hybrid Wheeled-Legged Quadruped
Robot for All-Terrain Applications

Combining the agility of legs with the efficiency of wheels for versatile mobility.

Go2-W Overview

The Unitree Go2-W is an advanced quadruped robot that integrates both legged and wheeled locomotion, providing unparalleled adaptability across various terrains. Equipped with 7-inch pneumatic tires and in-wheel motors, the Go2-W can seamlessly switch between walking and rolling modes, making it ideal for applications such as industrial inspections, security patrols, and research. Its robust construction, combined with advanced sensors and computing capabilities, ensures that the Go2-W delivers reliable performance even in challenging environments.

Features & Benefits

Hybrid Mobility

Go2-W combines legged locomotion with wheeled movement for enhanced versatility.

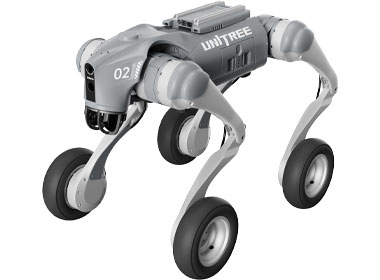

Advanced Perception

Go2-W features super-wide-angle 3D LiDAR and HD wide-angle cameras for comprehensive environmental awareness.

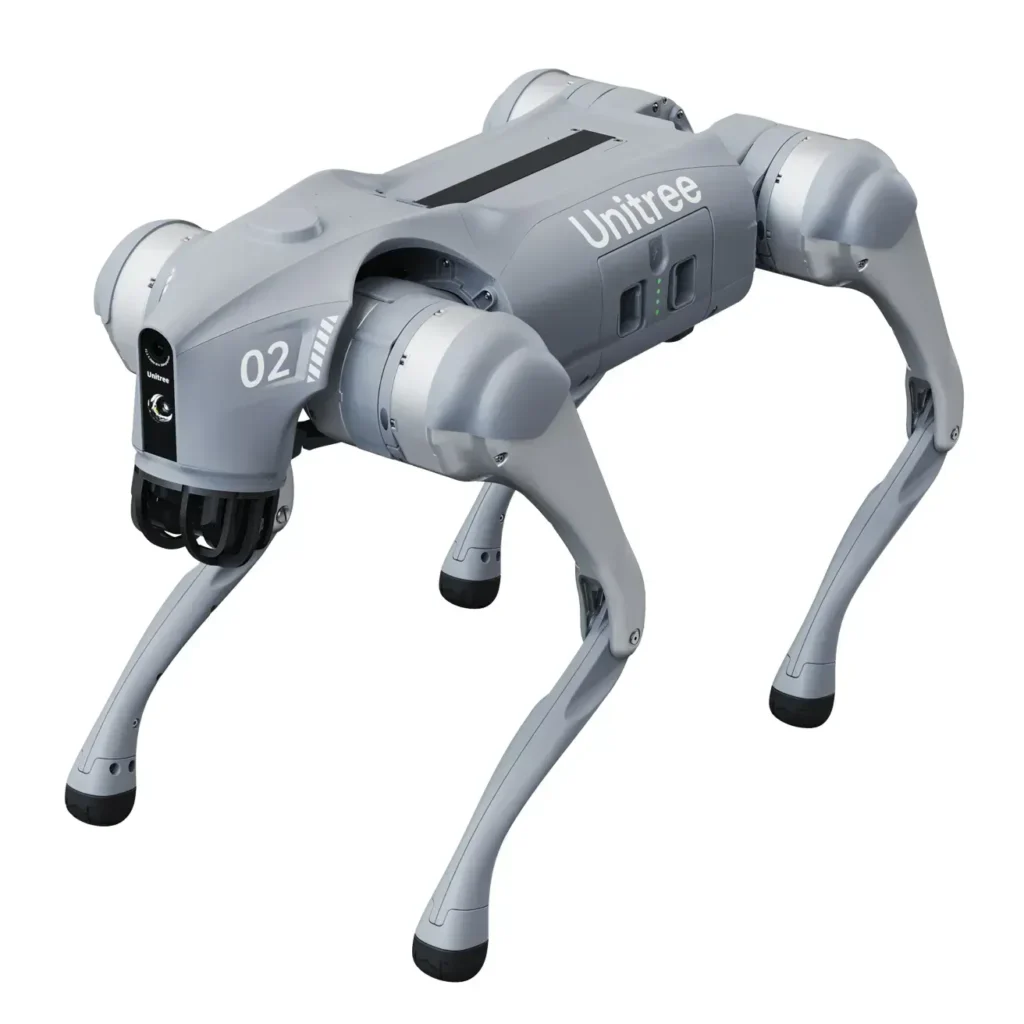

High Payload Capacity

Supports payloads up to 8 kg, accommodating various sensors and equipment.

Robust Construction

Go2-W is built with an aluminum alloy frame and high-strength engineering plastic for durability.

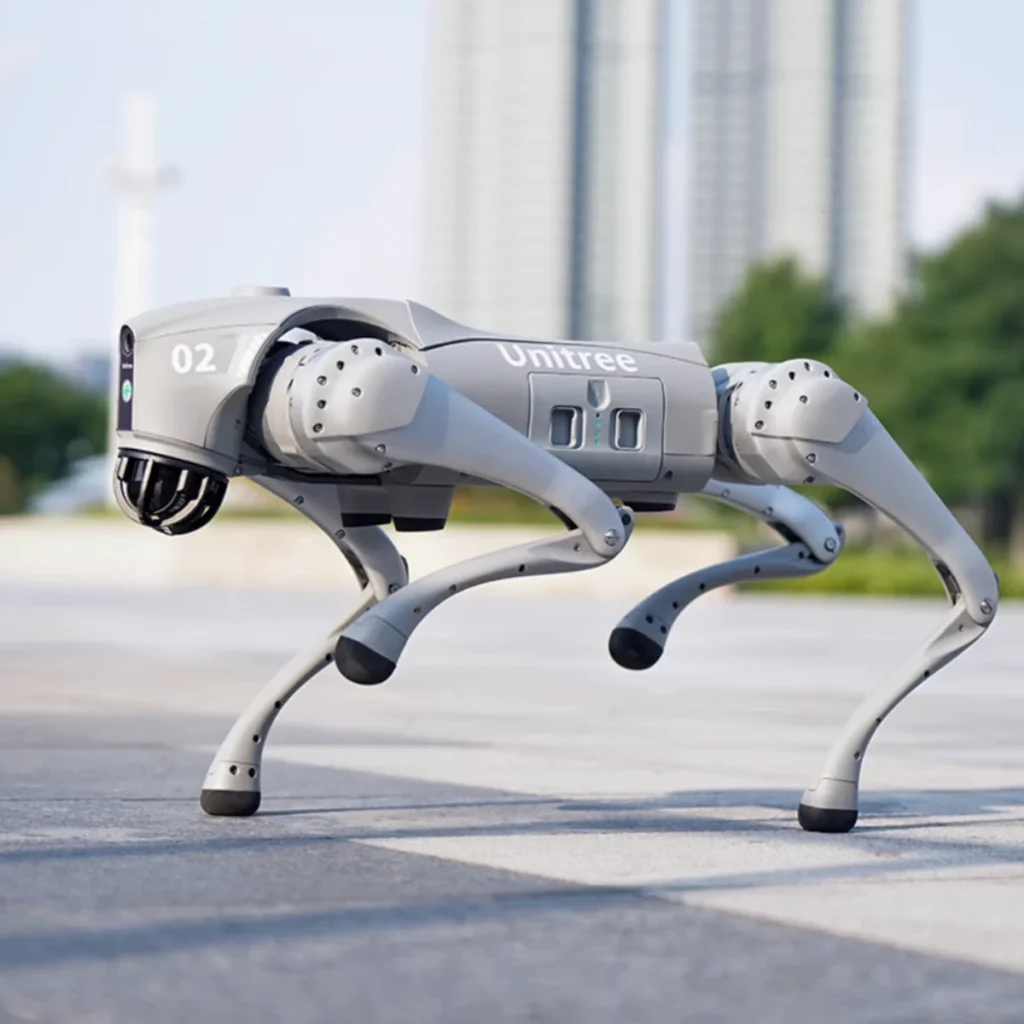

Intelligent Control

Equipped with an 8-core high-performance CPU and supports OTA software upgrades.

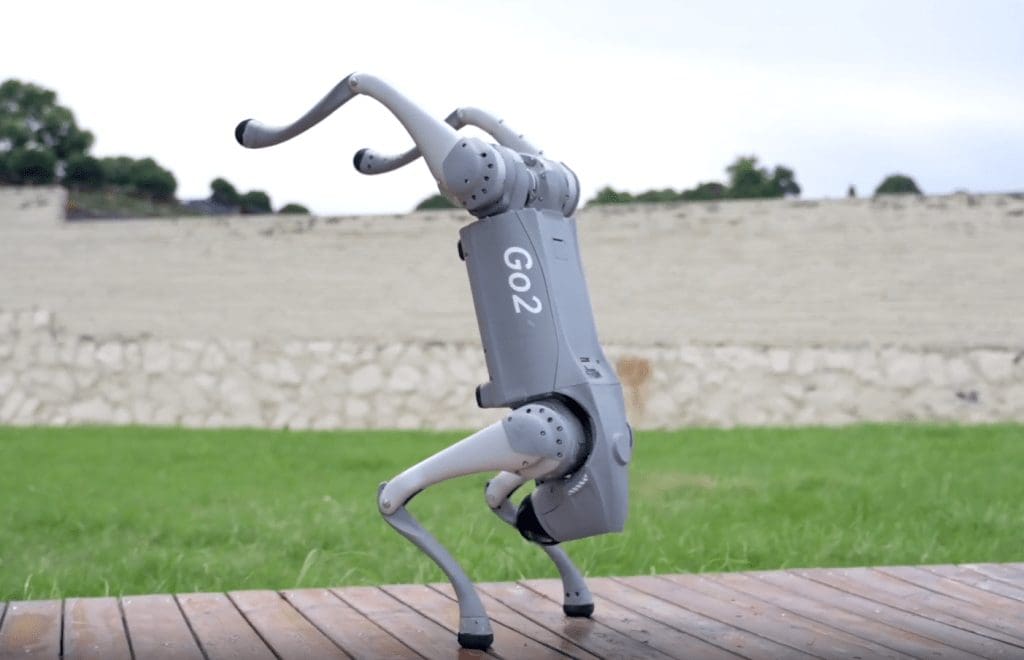

Versatile Connectivity

Supports Wi-Fi 6, Bluetooth 5.2, and optional 4G ESIM, Go2-W ensures stable connections and reliable remote control.

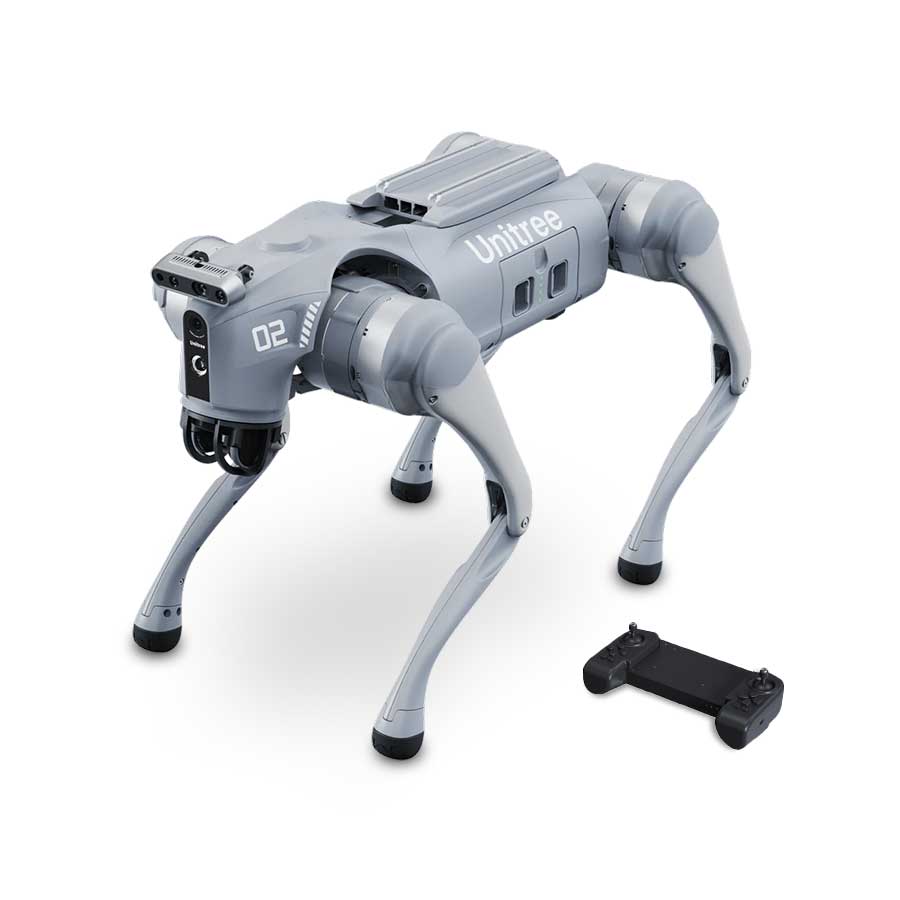

Extended Battery Life

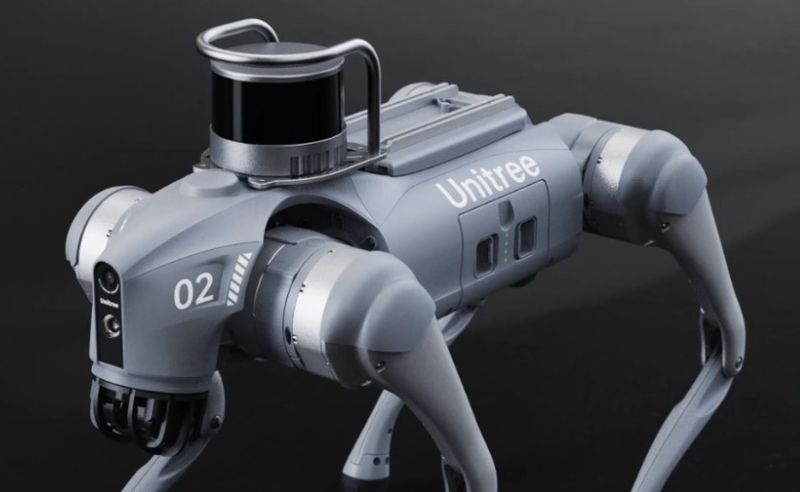

Secondary Development Support

Go2-W is compatible with ROS 2, facilitating customization and integration.

Unitree Go2-W Specifications

Dimensions (Standing)	70 cm × 43 cm × 50 cm
Weight (with Battery)	Approximately 18 kg
Payload Capacity	≈8 kg (Max ~12 kg)
Maximum Speed	0–2.5 m/s
Max Climb Angle	35°
Max Obstacle Height	<70 cm
Battery Capacity	15,000 mAh
Operating Time	1.5–3 hours
Charging Time	Fast charge (33.6V 9A)
Computing Power	8-core high-performance CPU
Joint Parameters	16 aluminum knee joint motors
Max Joint Torque	About 45 N·m
Tyres	7-inch pneumatic tires
Sensors	Super-wide-angle 3D LiDAR, HD wide-angle camera
Connectivity	Wi-Fi 6, 4G, Bluetooth
Control Interfaces	Manual controller, APP support, voice function
Development Support	ROS 2 compatibility, secondary development
Warranty Period	12 months

Go2-W Applications

Industrial Inspections

Navigate complex industrial environments for routine inspections.

Security Patrols

Monitor and patrol facilities, enhancing security measures.

Research & Education

Serve as a platform for robotics research and educational purposes.

Exploration Missions

Adapt to various terrains for exploration and data collection.

Product Testing

Test and validate sensors or equipment in dynamic environments.

Integration & Support

Testimonials

Alex P., Industrial Engineer Qatar

The Unitree Go2-W is a marvel of engineering. Its hybrid wheeled-leg design allows it to navigate complex terrains effortlessly, making it indispensable for industrial inspections and exploration missions.

Sophia M., Robotics Researcher Egypt

The Go2-W’s advanced perception system, including 3D LiDAR and HD cameras, has elevated our robotics research. Its secondary development support with ROS 2 compatibility is a dream for developers.

Mohammed A., Security Specialist Saudi Arabia

The Go2-W’s robust construction and high payload capacity make it ideal for carrying sensors and equipment during security patrols. It’s a reliable partner for challenging tasks.

Emily R., STEM Educator Oman

We’ve used the Unitree Go2-W in our STEM programs, and it’s been a hit with students. Its intelligent control system and app-based interface make it both educational and fun to use.

Liam K., Automation Specialist Dubai

The Unitree Go2-W combines cutting-edge technology with real-world applications. From its extended battery life to its seamless mobility, it’s a testament to the future of robotics.

Enhance your operations with the Unitree Go2-W quadruped robot.

Frequently Asked Questions

What is the Unitree Go2-W Wheeled-Leg Robot?

The Unitree Go2-W is an innovative hybrid quadruped robot that combines both wheels and legs. It is designed for high-speed movement on flat surfaces and agile navigation over uneven terrain.

What are the key specifications of the Unitree Go2-W Robot?

The Go2-W weighs around 18 kg, supports a maximum payload of approximately 12 kg, and can reach speeds up to 2.5 m/s. It features a compact design that allows easy movement in both indoor and outdoor environments.

What types of terrain can the Unitree Go2-W handle?

The Unitree Go2-W works on various surfaces like flat floors, slopes as steep as 35 degrees, and rough ground. It uses its wheeled-leg setup to switch between rolling and walking.

What is the battery life of the Unitree Go2-W?

The battery of the Unitree Go2-W lasts about 1.5 to 3 hours, depending on how it is being used and the surface. It also lets users swap batteries to keep it running longer.

What sensors and smart technologies are included in the Unitree Go2-W?

It comes with wide-angle LiDAR, HD cameras inertial measurement units, and several environmental sensors. These tools help with tasks like mapping in real time spotting obstacles, and navigating.

What are the main applications of the Unitree Go2-W Robot?
